Q- Multiplying Loop Antenna

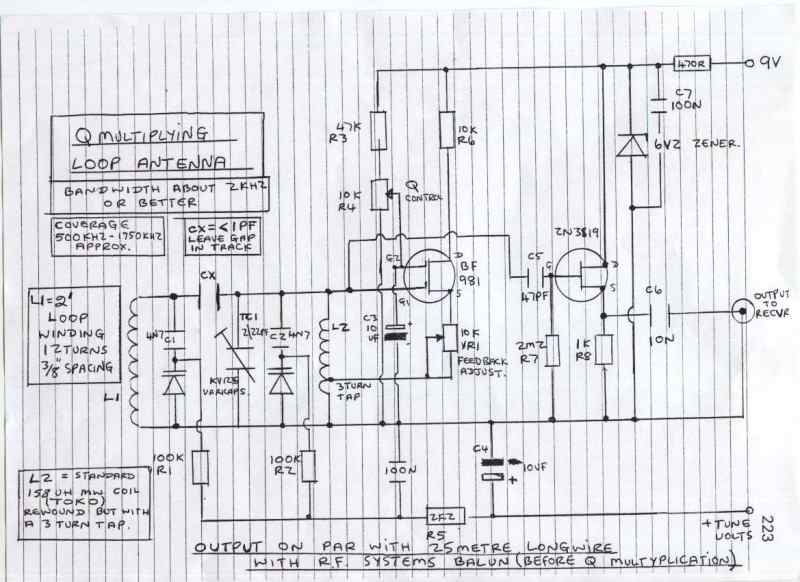

Circuit diagram:

Circuit Notes

This circuit is designed to be used in conjunction with the standard 4 foot square loop used in MW for long distance reception.
