The problem: I need to measure how much power different Android applications make the phone to consume.

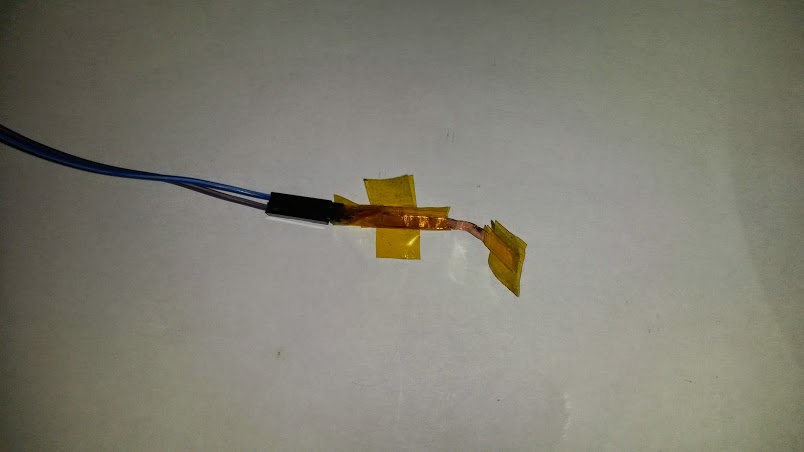

Measurement method: Measure how much current the phone takes from it’s own battery. So I needed to somehow attack a measurement device between battery terminal and battery contact on the phone. This could be made by using a piece of dual side flexible circuit board put between the contacts. It would allow to pass the current through any suitable current measurement device. I did not have suitable flexible circuit board material around, so I used few pieces of Kapton tape and copper tape to make a good replacement for it. Two copper tapes and a layer of Kapton tape between them as insulation is the construction I used. It is flexible and could be easily cut to needed shape. And I can easily solder the connector to it (copper is easy to solder and Kapton is heat resistant).

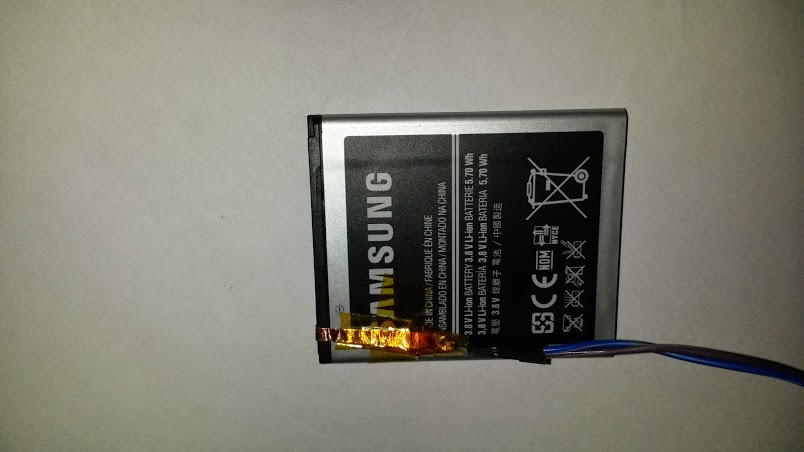

Then I just had to put it to battery over plus terminal and feed the signals from free end to multimeter current input.
Because in this project I would be dealing with lithium batteries (that are potentially dangerous when short circuited) and somewhat expensive hardware (smart phone), I had to be careful what to do. I did first proof-of-concept with old Nokia N73 phone, and when I I could work with it, I moved to the planned target: Samsung Galaxy Trend+. I selected a decent cheaper end Android phone (around 100-120 Euros) as test subject because if something goes wrong I loose much less money than with top-of-the line phones (400-700 Euros).

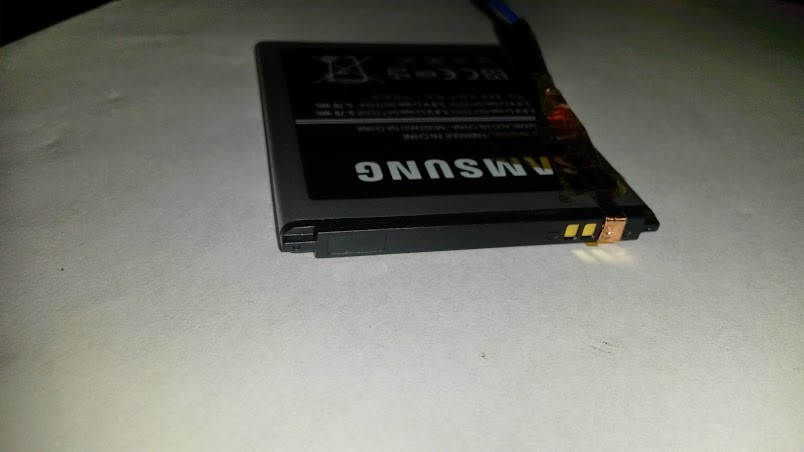

When the the measurement had was carefully put to right place on battery and secured to it, and everything that could make short circuit outside measurement are were insulated with kapton tape, I could safely put the battery to phone. I do not want to cause any potentially disasters with any unwanted short circuits.

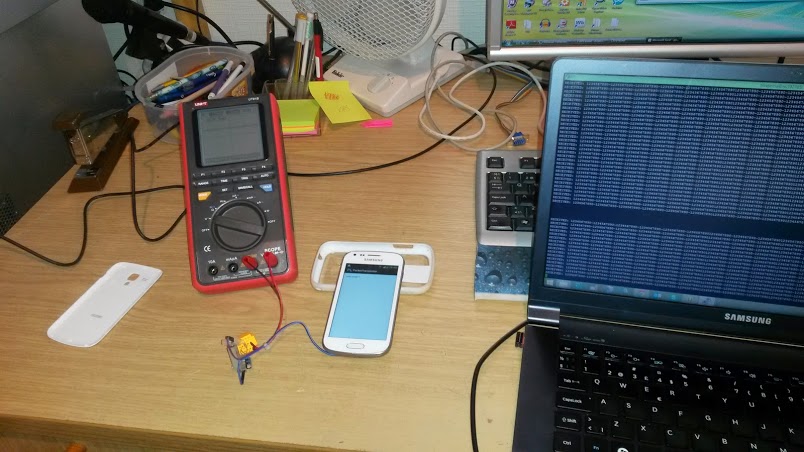

I wired the signal to UT-81B multimeter/oscilloscope. First I used the current measurement range provided by UT-81B. With it I could easily get idea of the current that goes. I could easily see the current changing from few mA to around 500 mA depending on what is done with the phone. If I connect the USB charger, I get 300-400 mA on the other direction. Things work well here, but on the oscilloscope screen I could easily see that the current changes a lot at quick pace, typically there are short quite high spikes and then times with less current. If I measure the current with multimeter current range, and log the results once per second to PC, there is risk of serious measurement errors on average current.

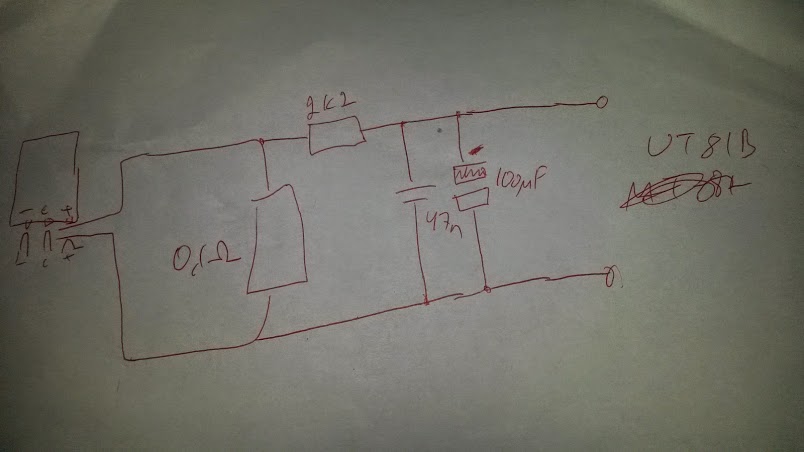

I needed something more clever, something that can filter me the average current reading that I can log. I came up with the following circuit that consists of 0.1 on resistor shunt followed with a low pass filter (around 2 seconds time constant). The low pass filter will integrate me a voltage comparable to average current, and it does not change too quickly for logging once per second.

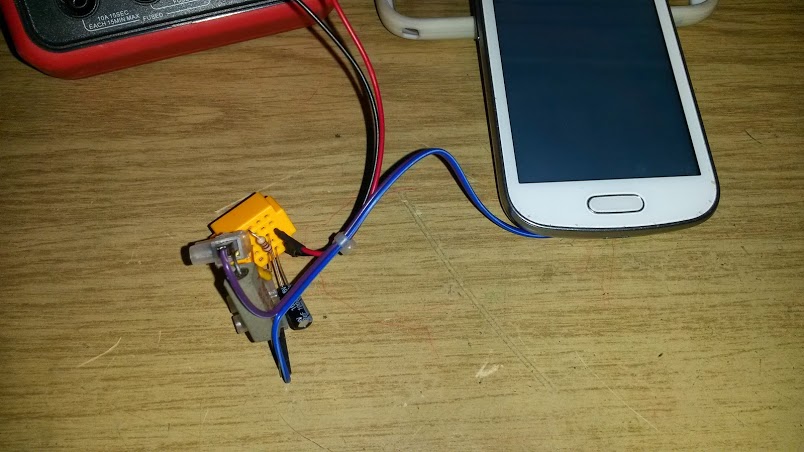

I built the circuit to small breadboard. The current carrying wires are directly screwed to the resistor wires instead of going though the breadboard (four terminal sensing style apprach) to minimize the effect of contact resistance near 0.1 ohm resistor (the resistance is so small that even small contact resistances can cause considerable measurement error).
The circuit output is so that I get 1 mV out per every 10 mA. With UT-81B multimeter DC measurement resolution of 100 uA, I could get resolution down to 1 mA. This is well workable solution. Now I just had to connect the multimeter with optically isolated USB connection to PC and use UT-81B software to log the data from multimeter. The software can easily log time-stamped data in every 1-2 seconds and save them in a format that could be opened with Excel. I have now a good test setup. I could measure the current consumption at 1 mA resolution and at round 5% accuracy (I compared DC reading with another multimeter). With a little bit calibration the circuit could be made even more accurate.
