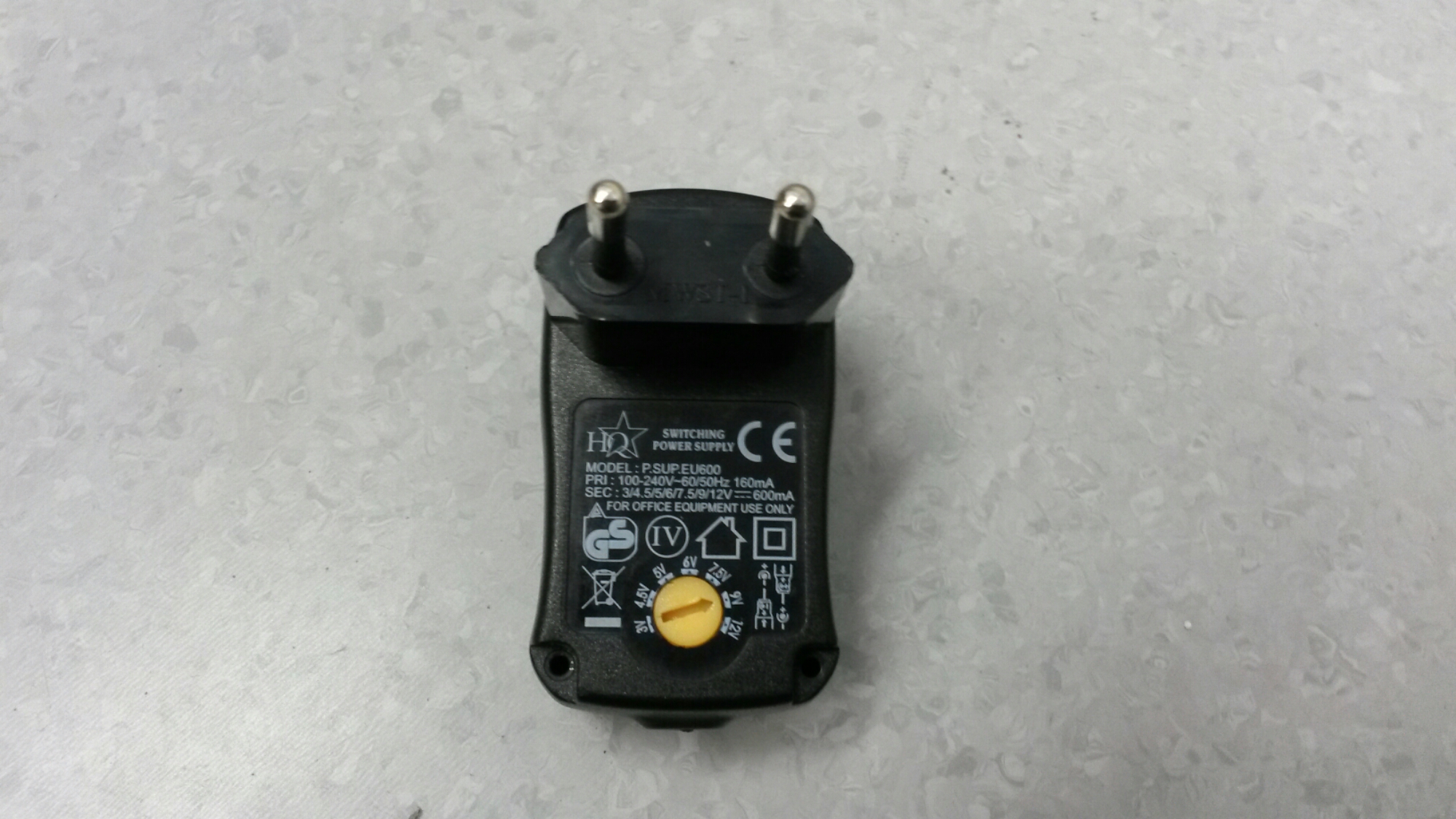

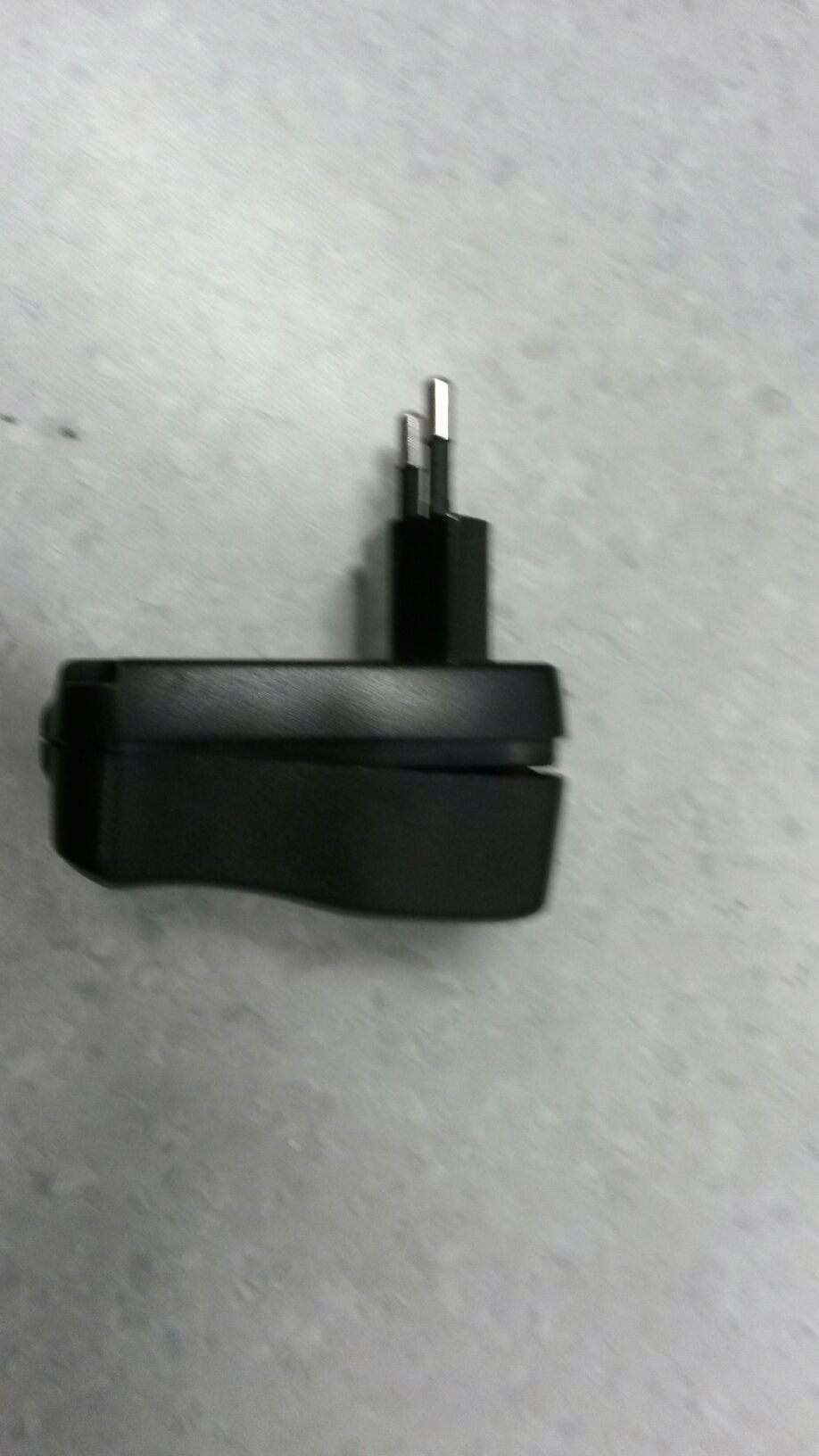

Hq Power adjustable PSU

Here is teardown of one failed power supply.

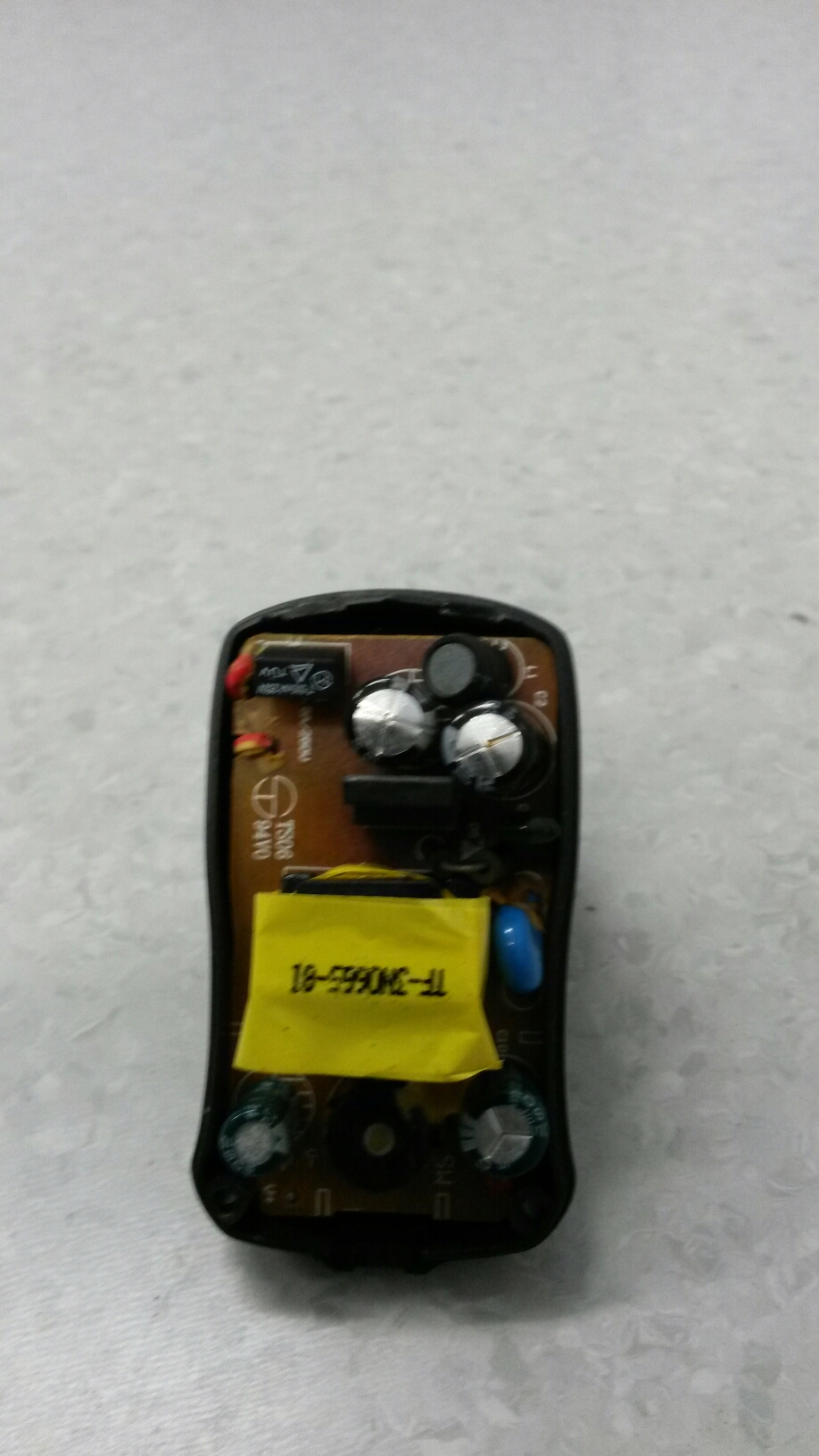

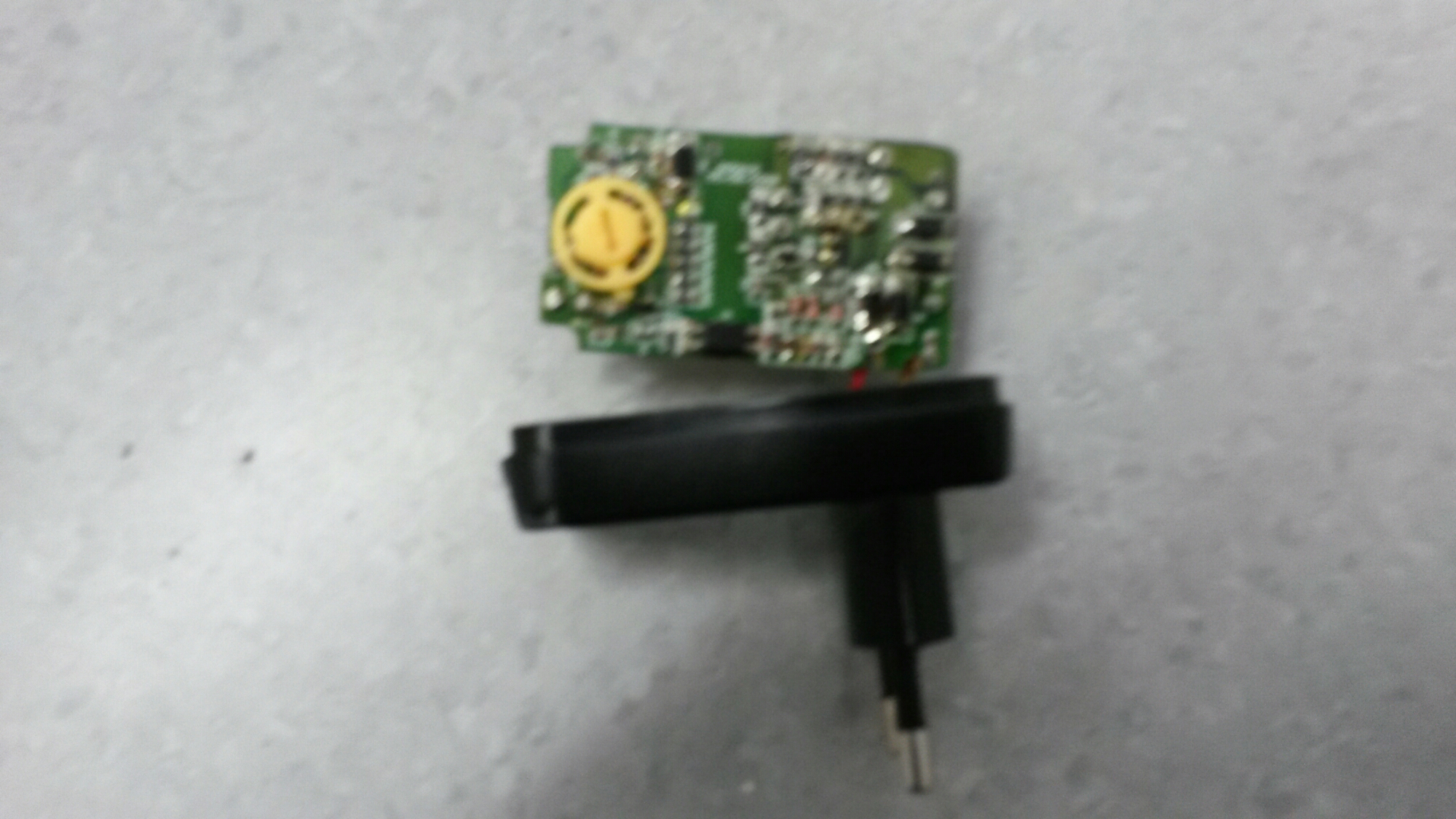

What is inside



Two 6.8 uF 400V capacitors had failed and burned the mains fuse. Good design that it was well protected. But again the failure was bad electrolytic capacitors.


This device was not worth to repair.
