Measurement of earth loop impedance and determining the Prospective Fault Current (PFC) are critical for safety and form integral parts of the International Electrotechnical Commission
(IEC) guidelines like standard IEC 60364 (and its various national equivalent standards).
The prospective short circuit current (PSCC) or available fault current or short circuit making current is the highest electric current which can exist in a particular electrical system under short-circuit conditions. It is determined by the voltage and impedance of the supply system. It is of the order of a few hunded to few thousand amperes for a standard domestic mains electrical installations andas high as hundreds of thousands of amps in large industrial power systems.
A basic electrical theorem says the amount of current that will flow through a short circuit depends on two variable values: The system voltage and the connected total impedance of the current flow path from the source to the point of the fault. The connected total impedance of the short-circuit current flow normally includes the feeder conductors’ resistance and reactance, any transformers’ impedances (going from the point of fault back to the energy source), and any other equipment connected in the path of current flow. In many short-circuit current calculation examples the source voltage has said to have no internal impedance, making short circuit calculations simpler and giving you result that corresponds short-circuit current will be at its worst case (real short circuit current somewhat lower than this). As in most situations, we take conservative shortcuts, conservative on the side of safety, until situations present themselves that warrant digging into the details.
In designing domestic power installations the short-circuit current available on the electrical outlets should not be too high or too low. The short circuit current should be around 20 times the rating of the circuit to ensure the branch circuit so that protection clears a fault quickly and voltage drop at maximum load current is reasonable. If the short circuit current is lower than this figure, special precautions need to be taken to make sure that the system is safe; those usually include using a residual current device (sometimes called a ground fault interrupter) for extra protection.
There are also reasons why the prospective short circuit current (PSCC) shiuld not be too high. Short Circuit Current Rating (SCCR) is a rating on components and assemblies representing the maximum level of short-circuit current that a component or assembly can withstand. After initiating fault, the short circuit current stays until the interrupting unit of CB, breaks. During this short circuit time practically all the heat produced during fault is absorbed by the conductor on the wiring. The higher the current, more the wiring heats. Also the ciruit breakers have the maximum current they can safely break. Short circuit current ratings (SCCR) and available interrupting current (AIC) ratings marked on the equipment provide the information needed to provide a safe, code complying installation – those rating need to be higher than the prospective short circuit current (PSCC) available. In a fully rated system is one in which all of the electrical equipment (panelboards, switchboards, and overcurrent protective devices) is installed with SCCR or AIC ratings equal to or greater than the available fault current to which they might be subjected.
This was the theory, but how is the practice. So how can I measure this short circuit current? Shorting the mains outlet with multimeter in the current range would be dangerous, damages your multimeter and burns the fuse (in the best case). There are commercial electrical installation testers that can measure the available fault current.
But can you do this measurement with cheap common measurement instruments?
The answer is that you can do that. To do the measurement that reveals the loop impedance and the prospective short circuit current (PSCC) you need basically a voltage meter and a load that takes a known current from the mains power (current from few amperes to maximum outlet circuit rating should be OK). The idea is that you measure the voltage on your outlet without the load and with the load connected. Then you calculate the voltage drop cause by the load, and dividing it with the load current, you get the impedance. With this impedance and mains voltage, you can calculate the prospective short circuit current (PSCC).
I did this testing on normal electrical outlet in Finland. Here the nominal mains voltage is 230V AC, and the maximum current available from outlet is 10A or 16A (depending on the fuse size in the electrical panel).

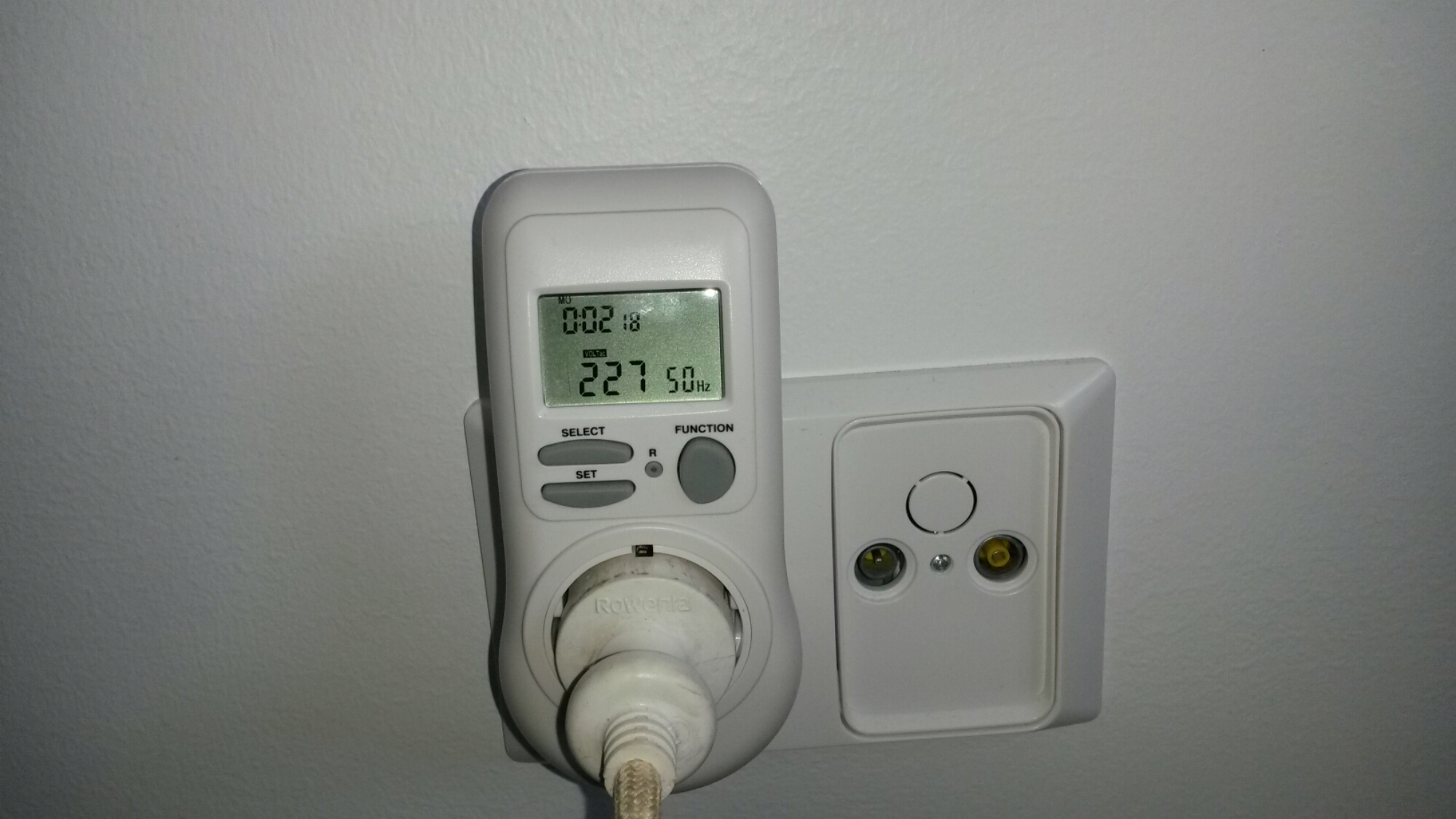

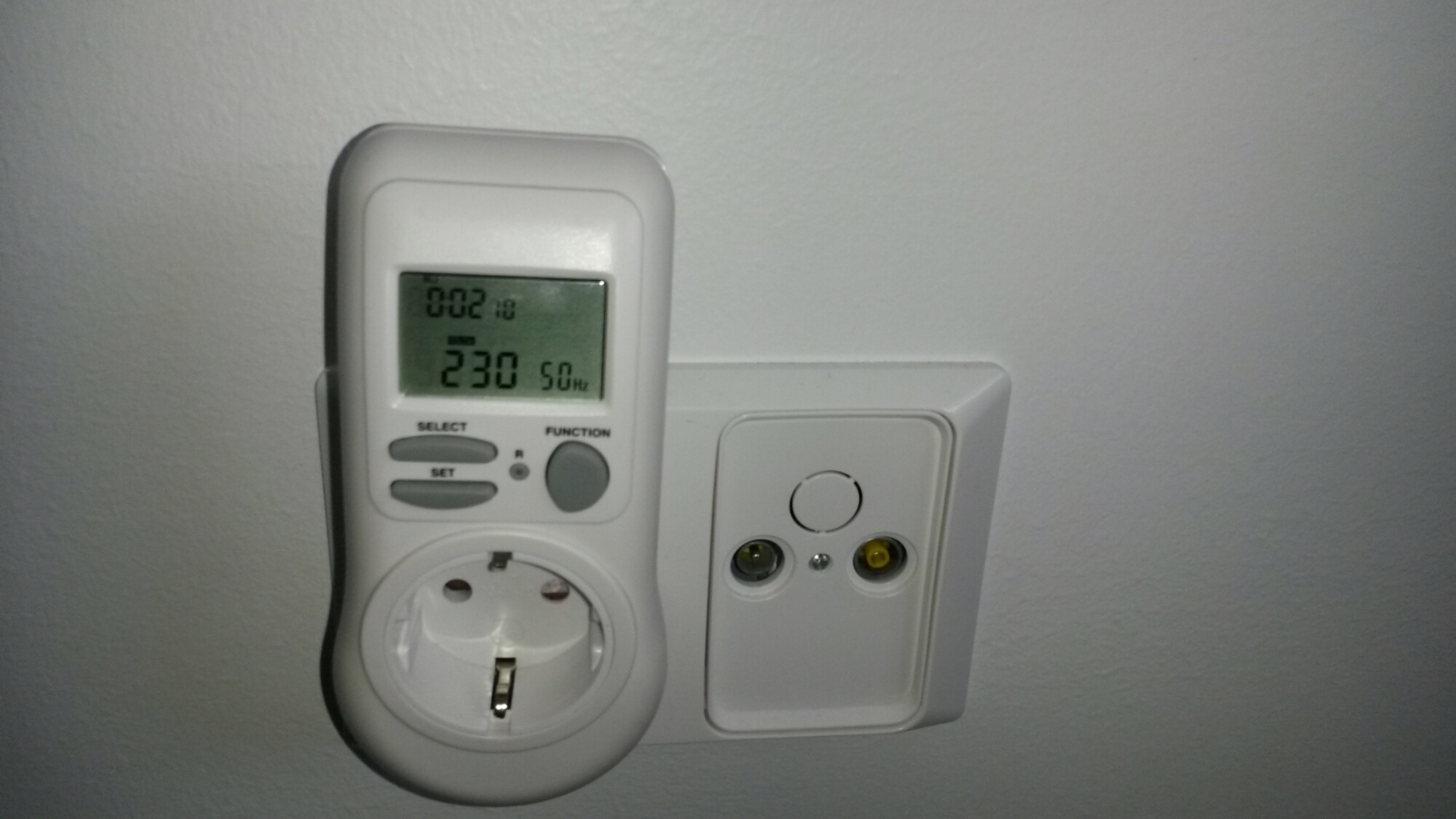

For the masurements of the mains voltage (and load current) I used a pretty cheap meter designed to measure mains voltage, current, power and so on. This instrument was sold many years ago by Lidl (ENERGY SAVING TIMER model 9149 from year 2008).

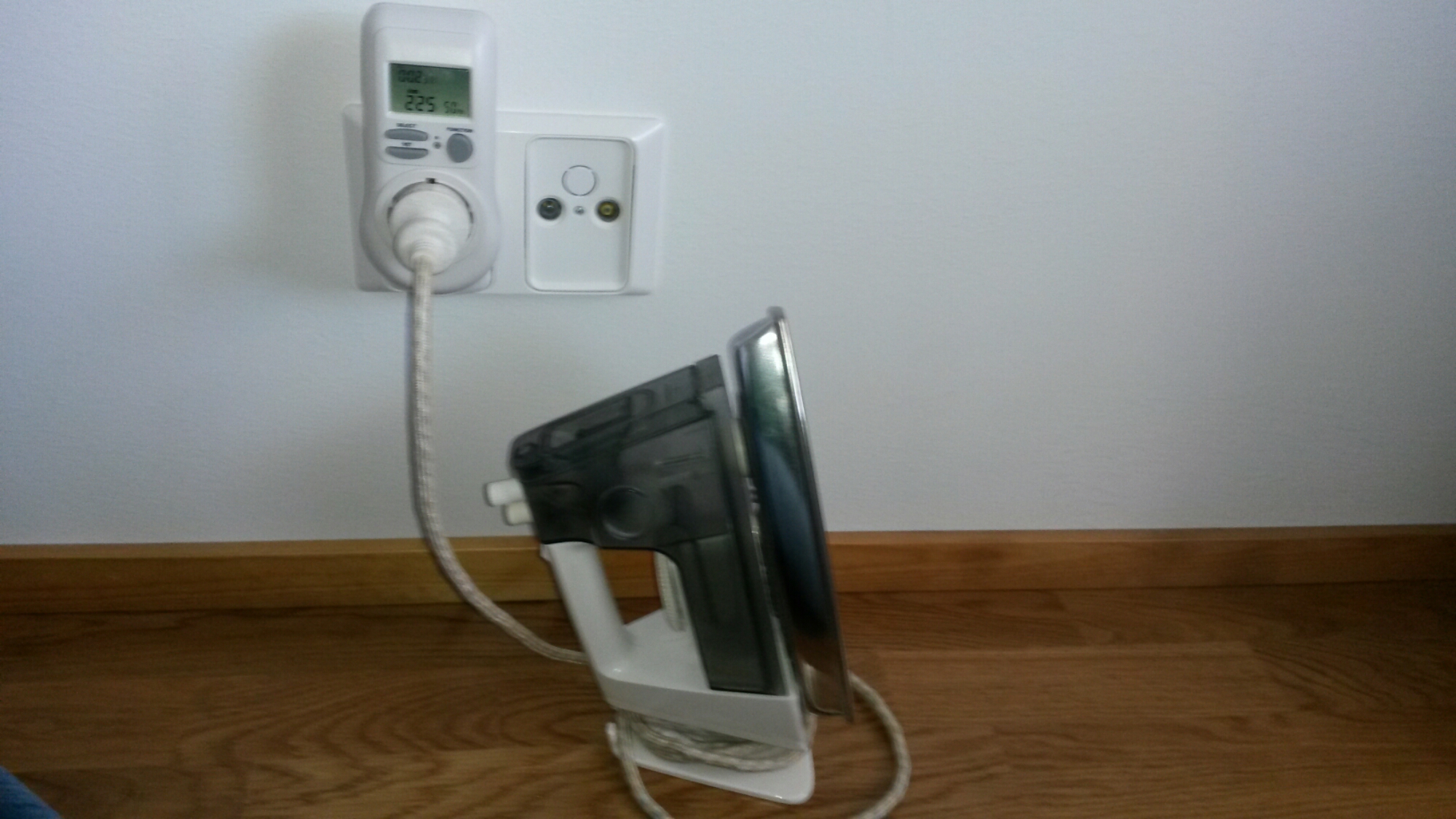

Add 1 kW load
Results

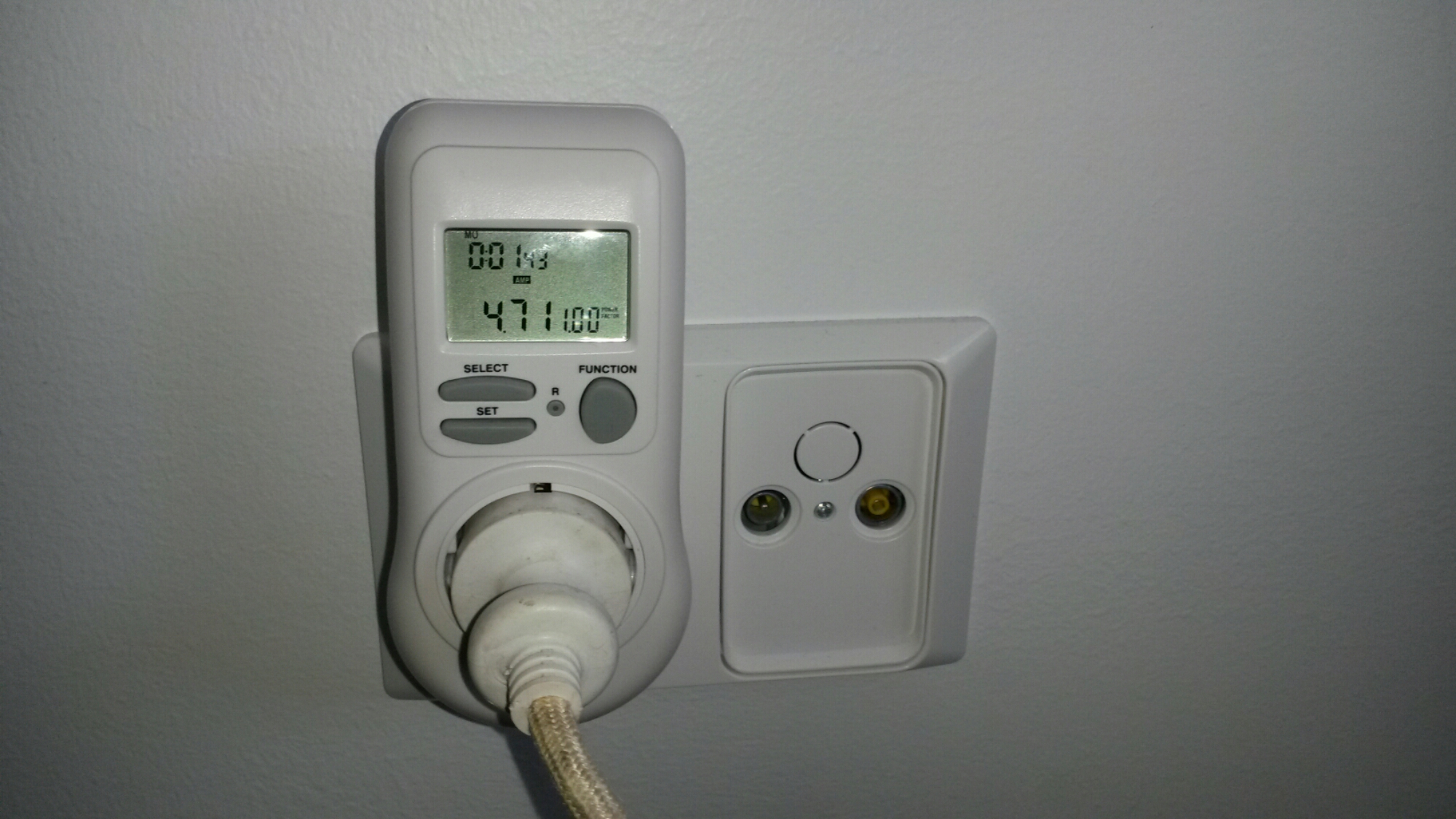

Result: voltage drop 3V at current 4.71A
Calculate loop impedance: 0.64 ohms
Maximum short circuit current: 359A
