In my Antenna measurements with RF noise source posting I described how antenna measurements can be done with RF noise source, directional coupler and SDR radio (DVB-T stick). To do measurement we connect the noise source to the output of the coupler, the antenna to the input of the coupler and the RTL-SDR dongle to the coupling (CPL) port of the coupler.
Because I did not have a nice 50 ohms directional coupler at the moment and getting one would need some investment (time and money to get one), thought if I had something suitable already.
I found some TV antenna network taps and remember that they are actually directional couplers. The downside with them is that they would be made for 75 ohms impedance and work best only at TV antenna network frequencies (around 40 MHz to 900 MHz or slightly more). But I though that they might be somehow used as directional couplers for 50 ohms antenna measurements if I an lucky. Let’s try to test them. I fortunately had access to some RF measurement instruments to see how those antenna taps work as directional couplers. And I also had antenna to measure (antenna tuned for 450 MHz).
First directional coupler I had: FA 1-8
http://www.polytron.de/index.php/en/splitters-taps-5-1000mhz/230-taps-5-1000-mhz
FA 1-8
Abzweigdämpfung / Tap loss (IN-TAP) 8,5 dB
Durchgangsdämpfung / Through loss (IN-OUT) 2 dB
Entkopplung / Isolation (OUT-TAP) 23 dB
Rückflussdämpfung / Return loss (IN/OUT/TAP) 18 dB

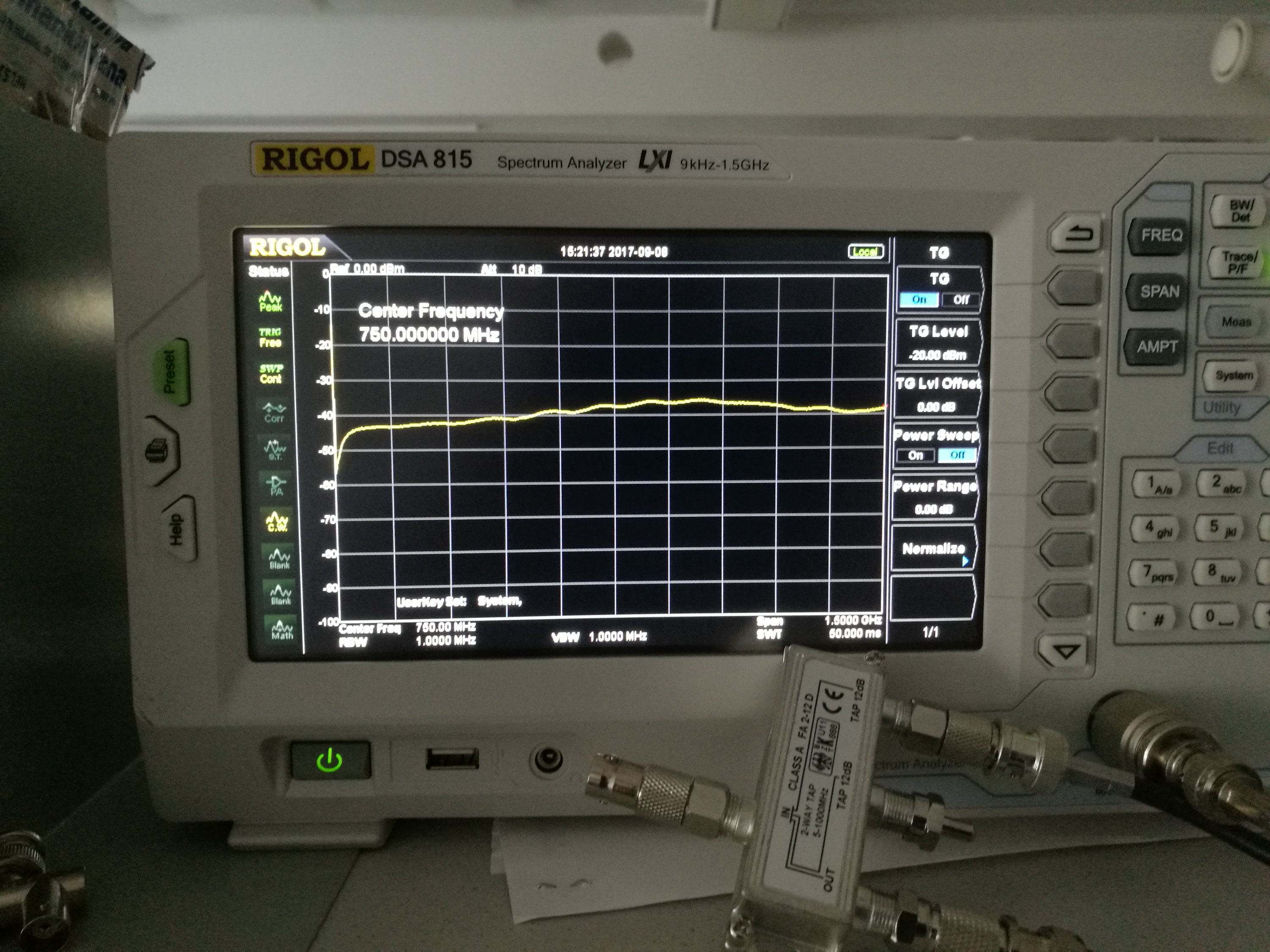

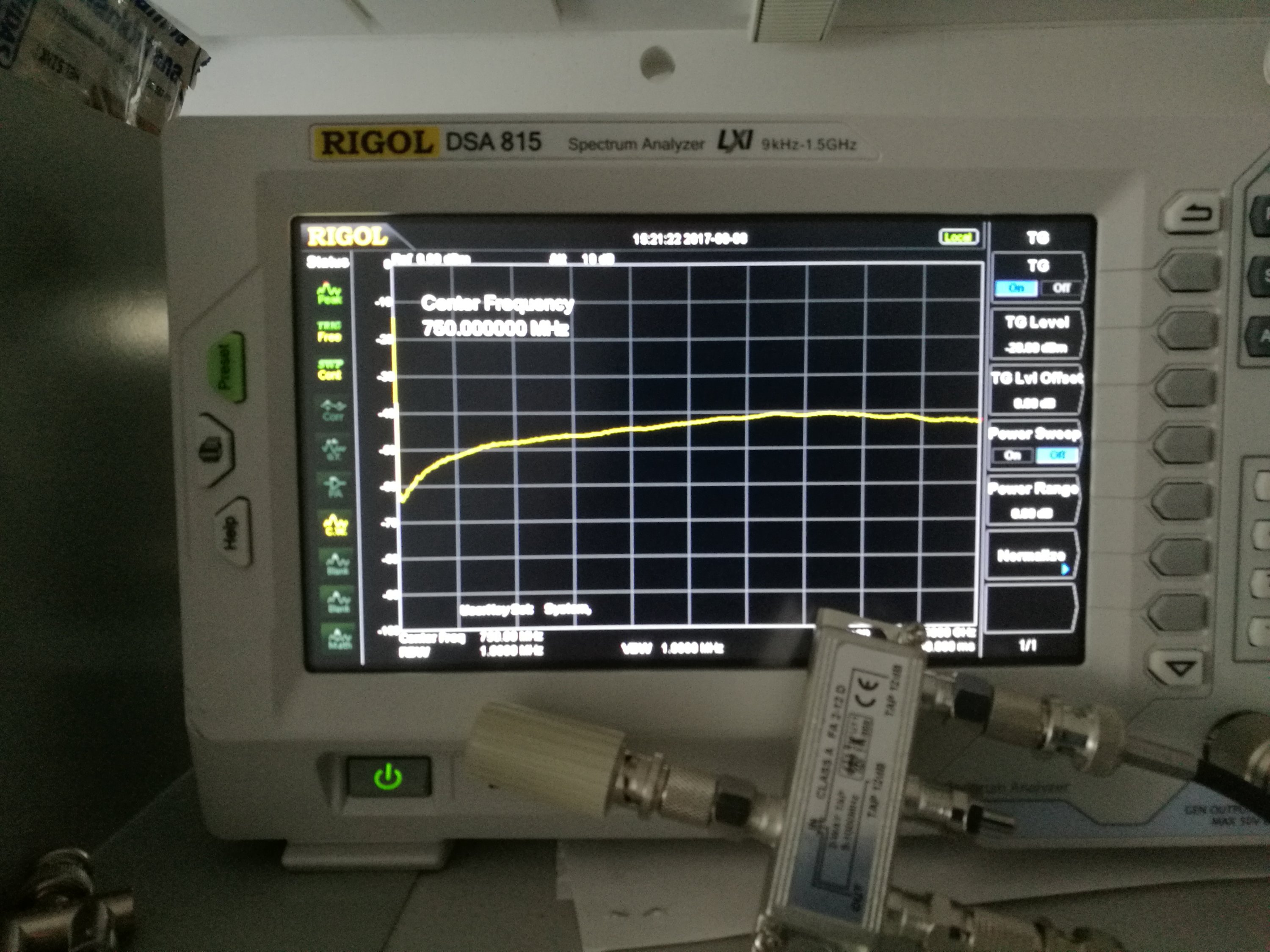

Measurements of this directional coupler on 50 ohms system (50 ohms source, 50 ohms load):

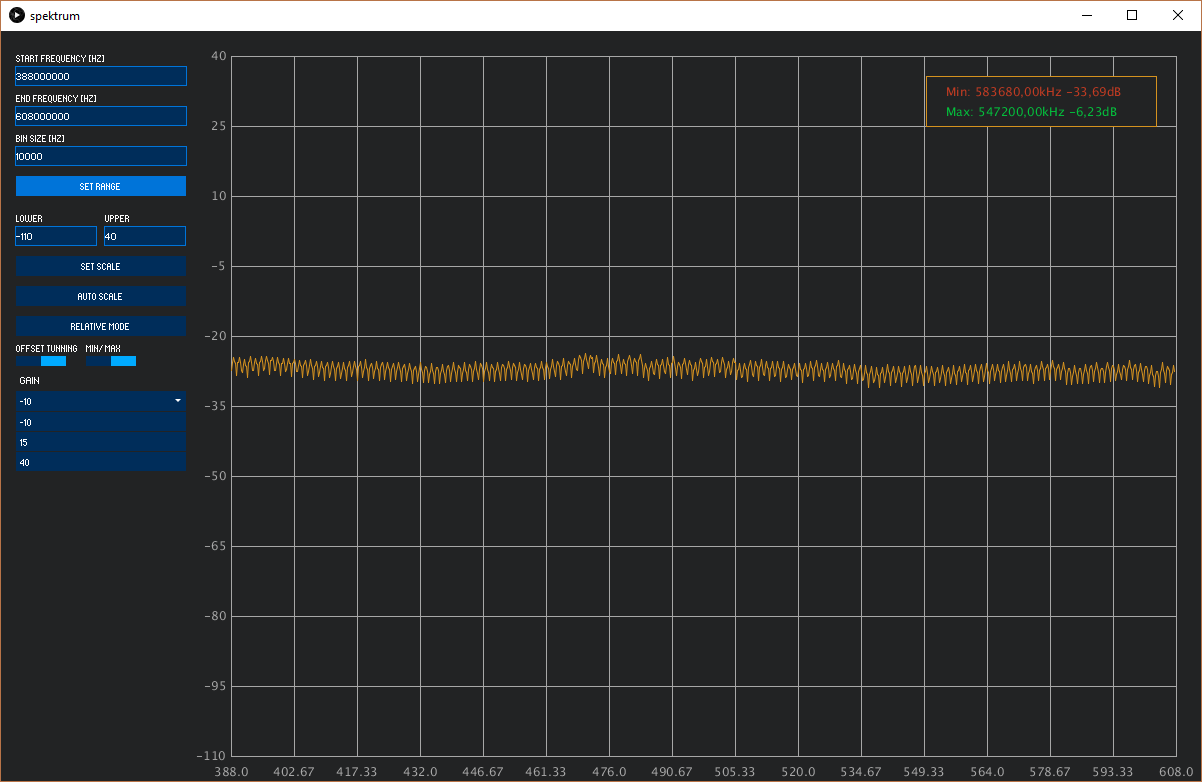

Results with 5o ohms terminator, FA 1-8 and Spektrum RTL-SDR Spectrum Analyzer Software:

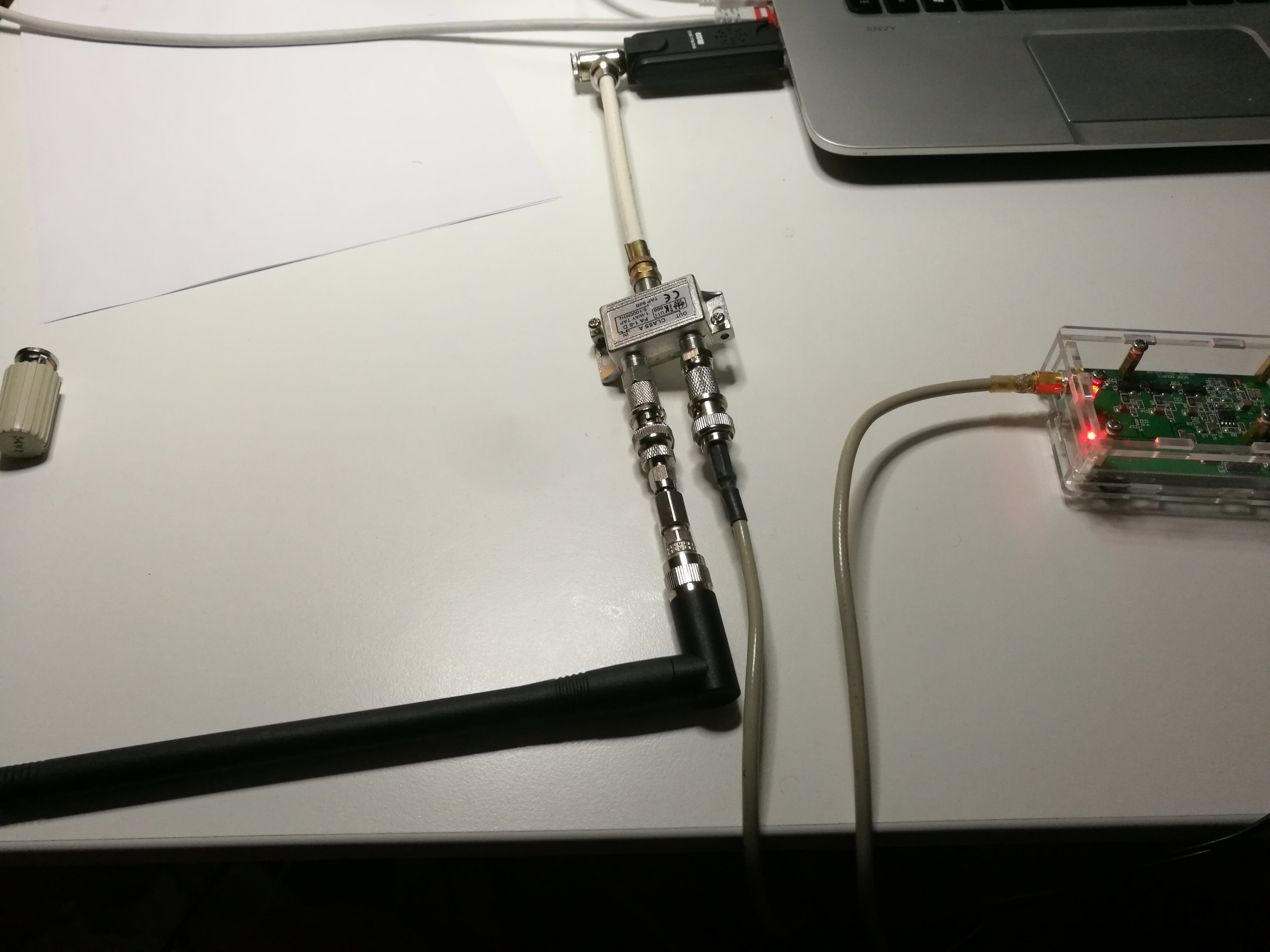

Measurement setup with antenna:

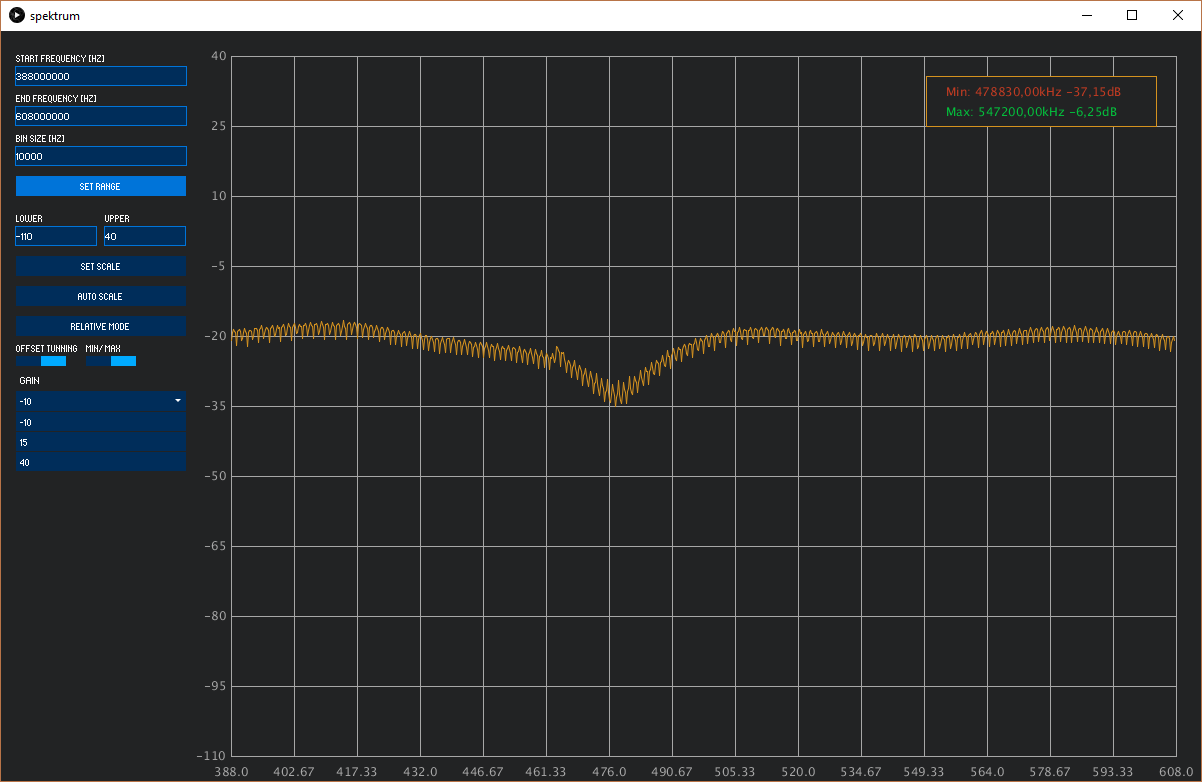

Results with 450 MHz antenna connected:
Second directional coupler: FA 2-12
FA 2-12 D
https://www.satpoint.at/produkt-kategorien/verteilertechnik/fa-2-12-d-
Abzweiger/Taps 5-1000 MHz
Technische FA 2-12 D Daten:
- Frequenzbereich: 5-1000 MHz
- 12dB Abzweigedämmpfung
- Schirmungsklasse A
- CE-Prüfzeichen
- Anschlüsse: F-Connectoren
- Massives Gehäuse aus Zink-Spritzguss
- Ein- und Ausgänge brummentstört
1 Signal Eingang
1 Signal Ausgang
2 Signal Abzweigung 12dB

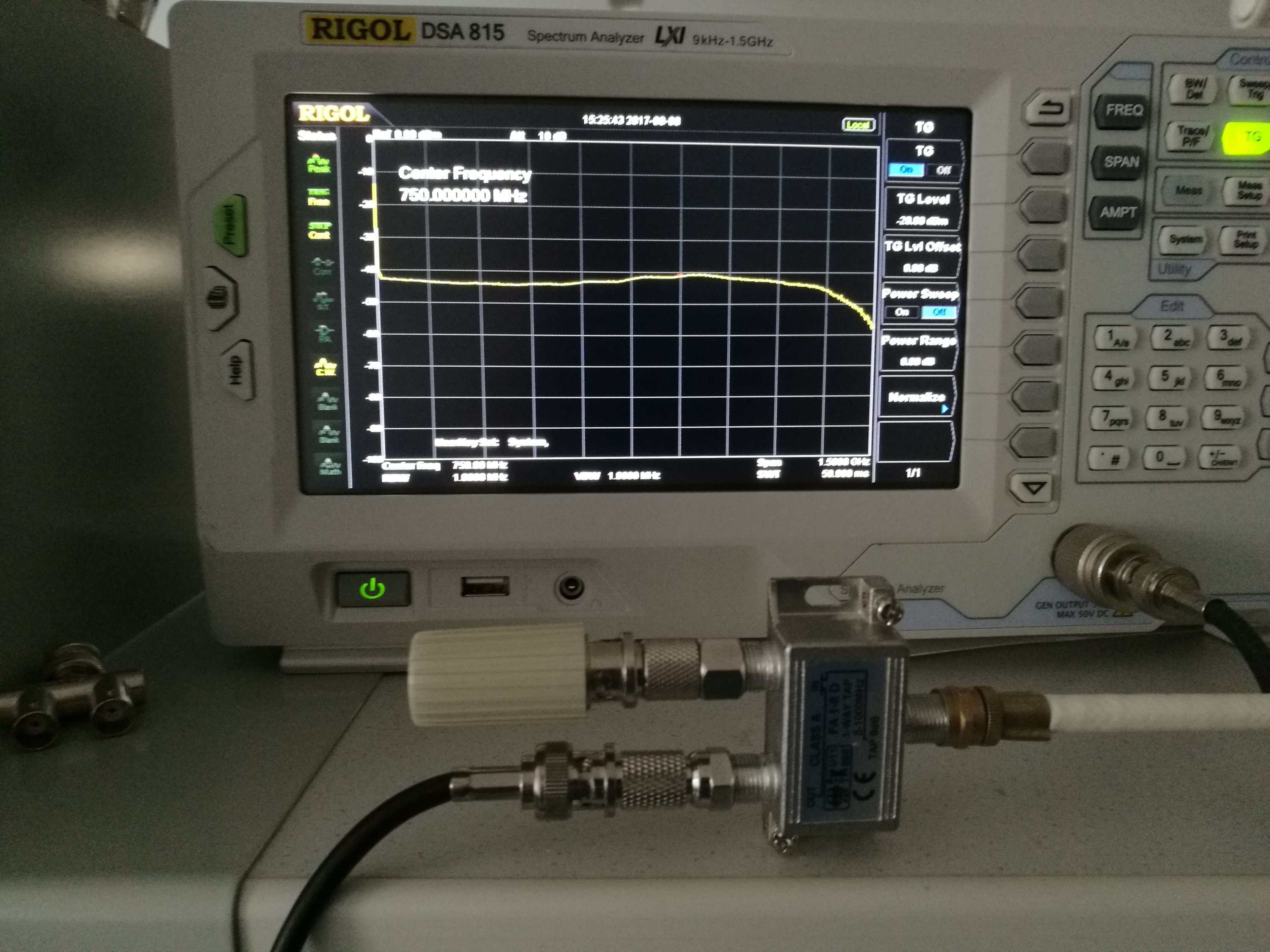

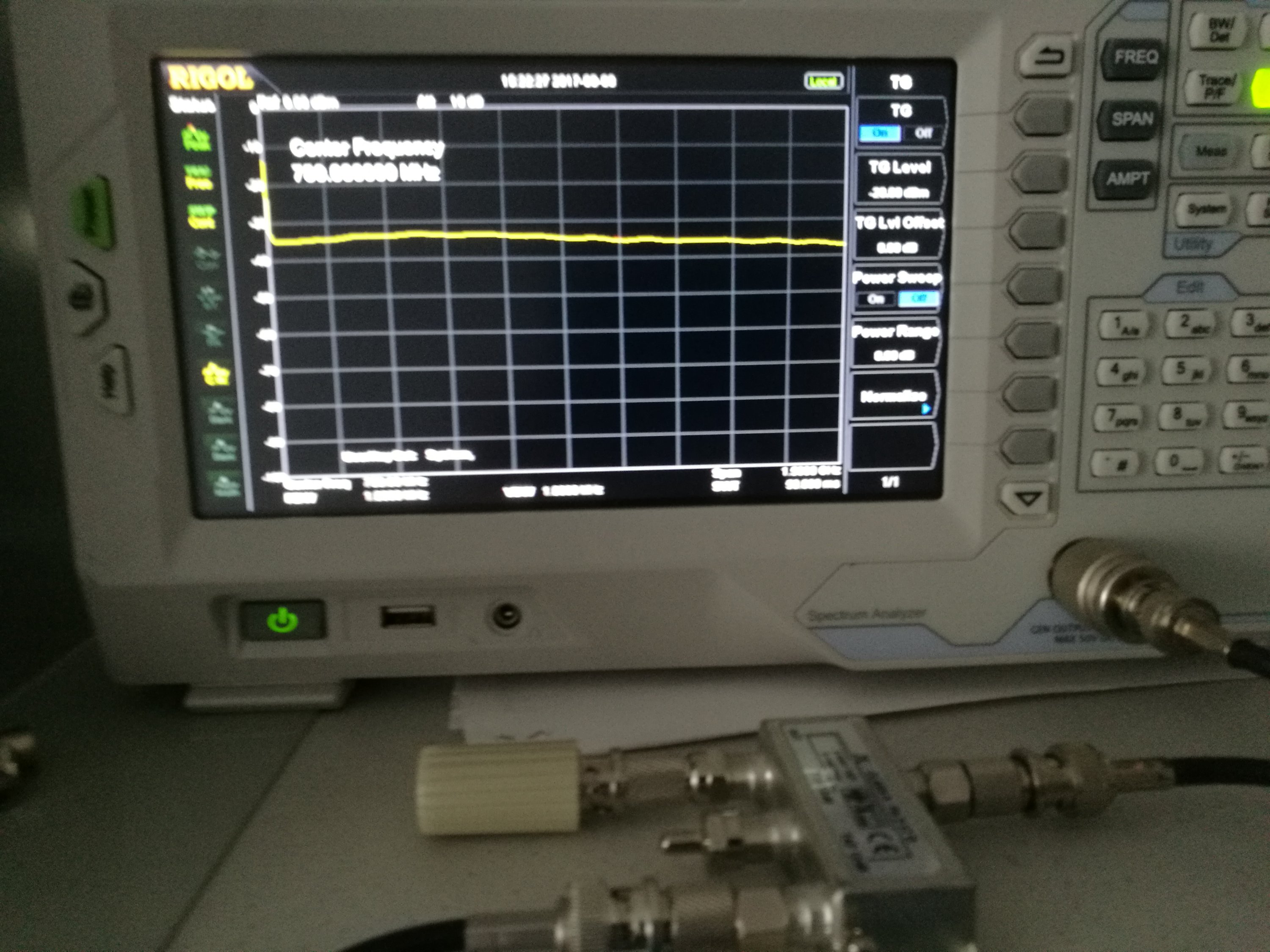

Measurements of this directional coupler on 50 ohms system (50 ohms source, 50 ohms load):

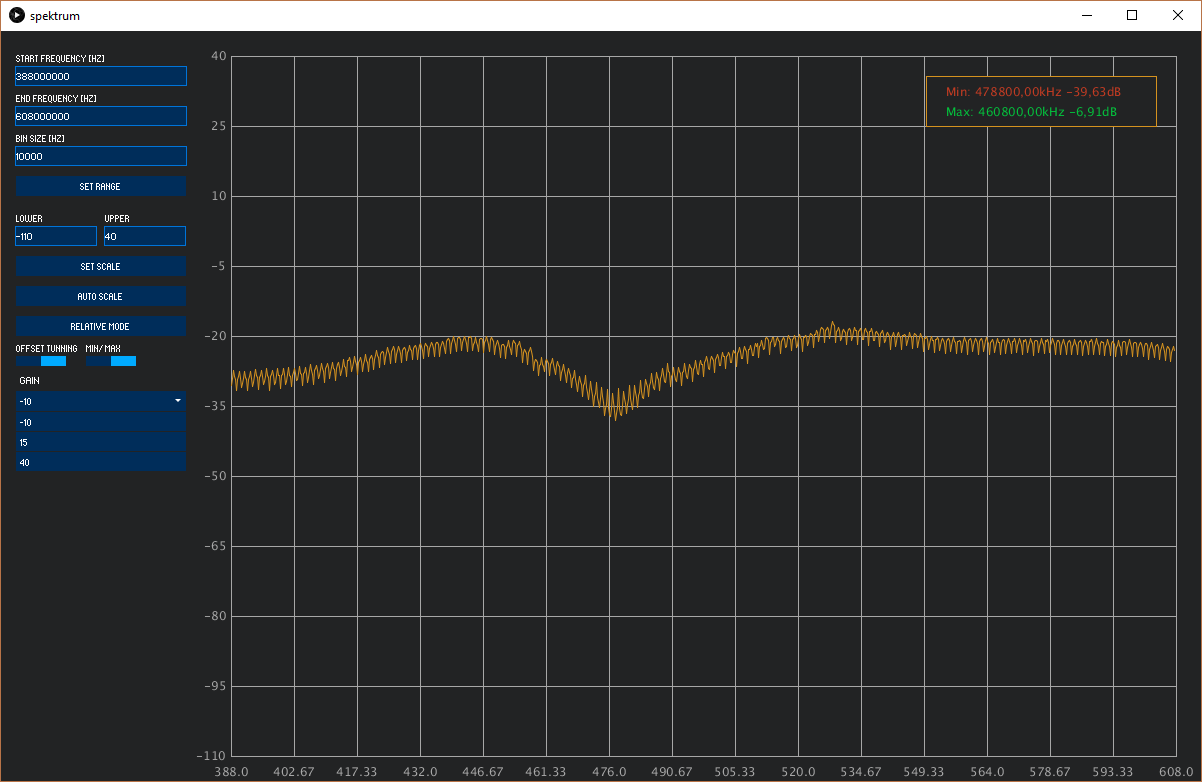

Results with 450 MHz antenna:
End results
The end result was that those antenna taps worked quite acceptably as directional coupler for antenna measurement. They are not ideal, but they are useful tools. In my measurements it seems that the first 8 dB tap was slightly better for this application.
