I ordered this cheap (around $10-15) 5.1 channel USB sound card from China few years ago. The device does not have markings on the box so hard to day which exact model it it was. It seems that there are several similar looking cards available at dx.com and banggood.com even today.
CM6206-LX based USB Sound Card (Cheap Chinese 5.1 + Optical in / out)
My sound card got damaged so that miniUSB connector was not where it was supposed to be – it was loose somewhere inside the case.

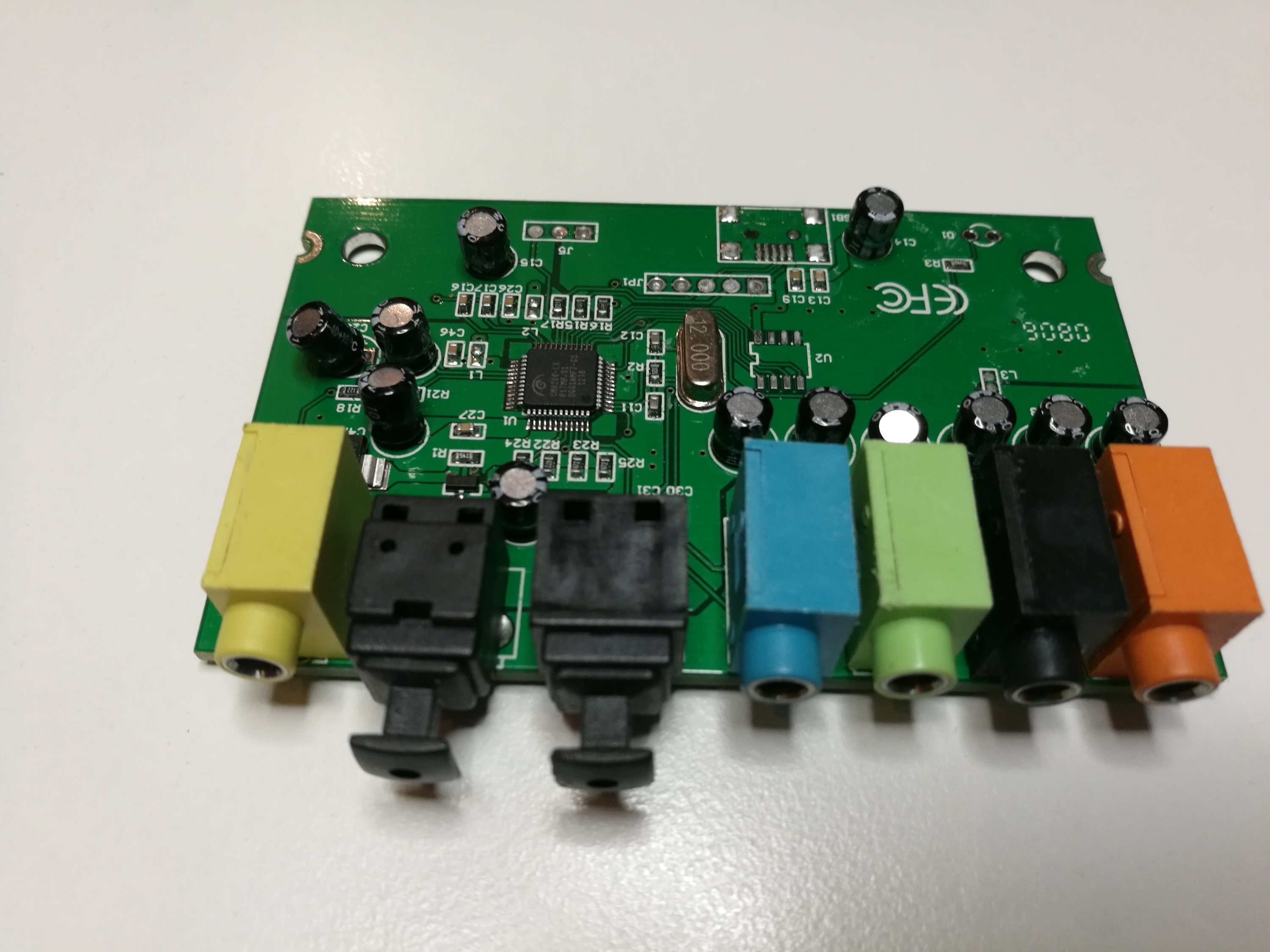

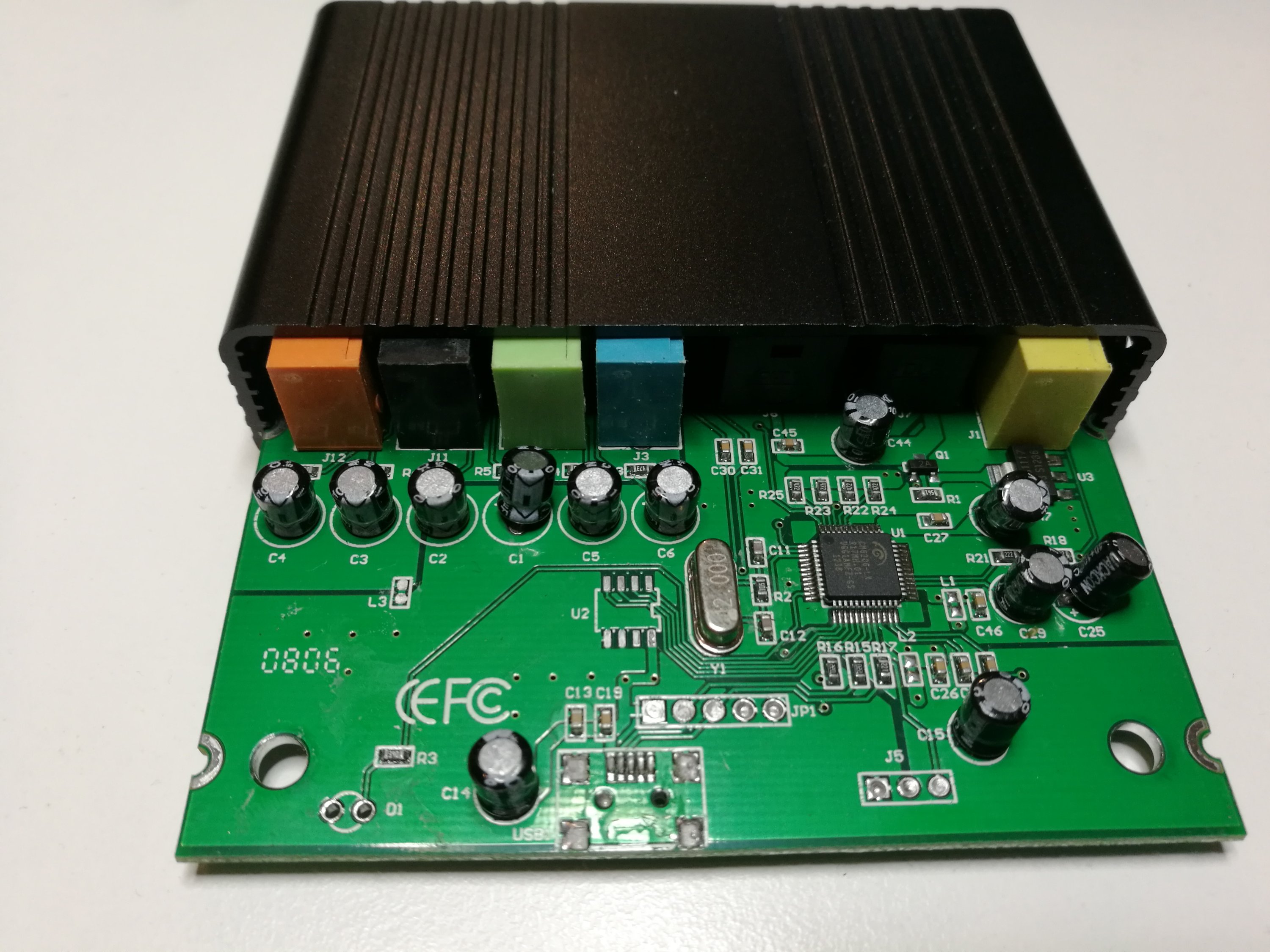

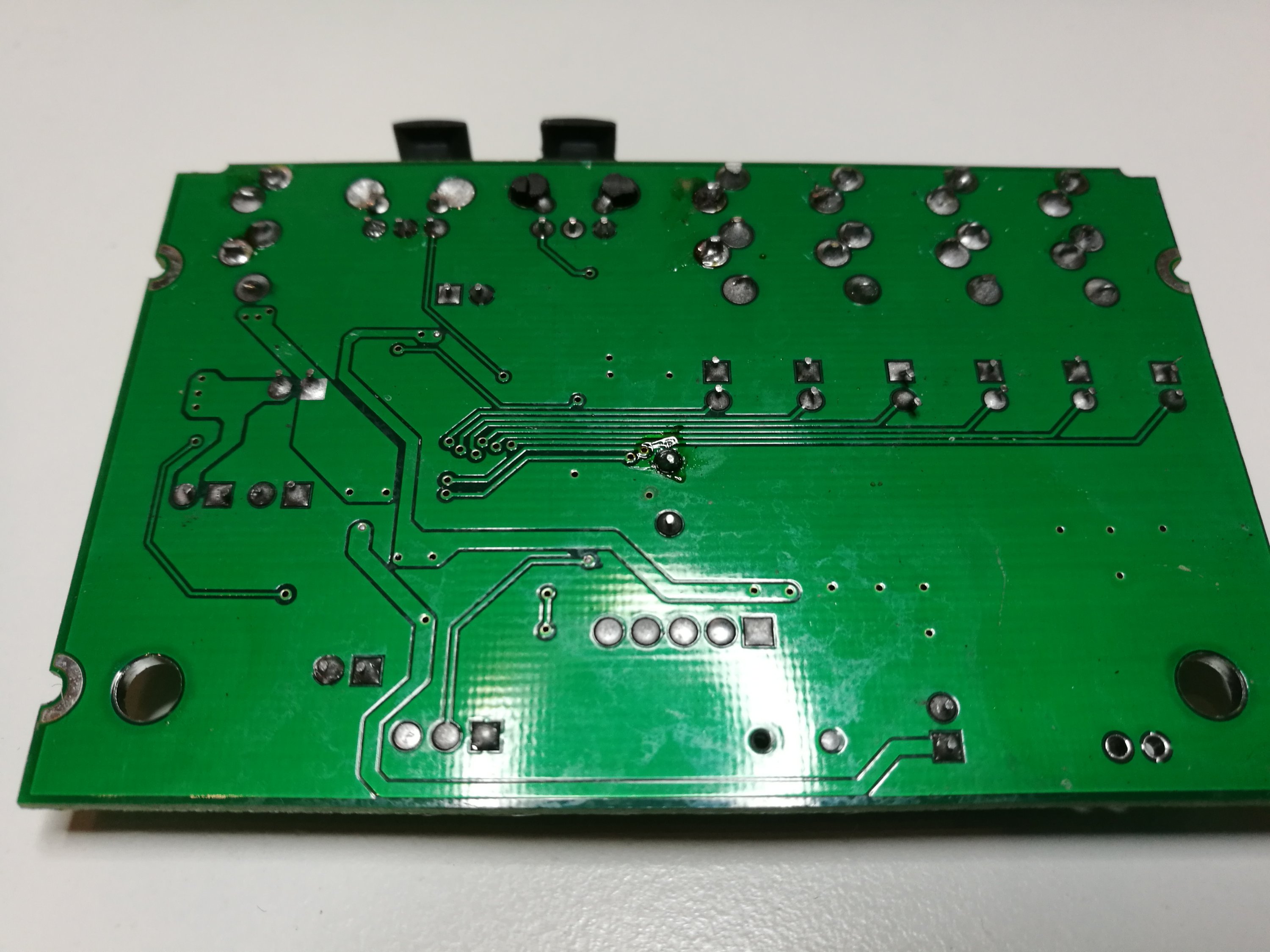

Let’s open the device to see what is inside and if it can be repaired easily.
Pretty much every funtionality seems to be made with this chip.

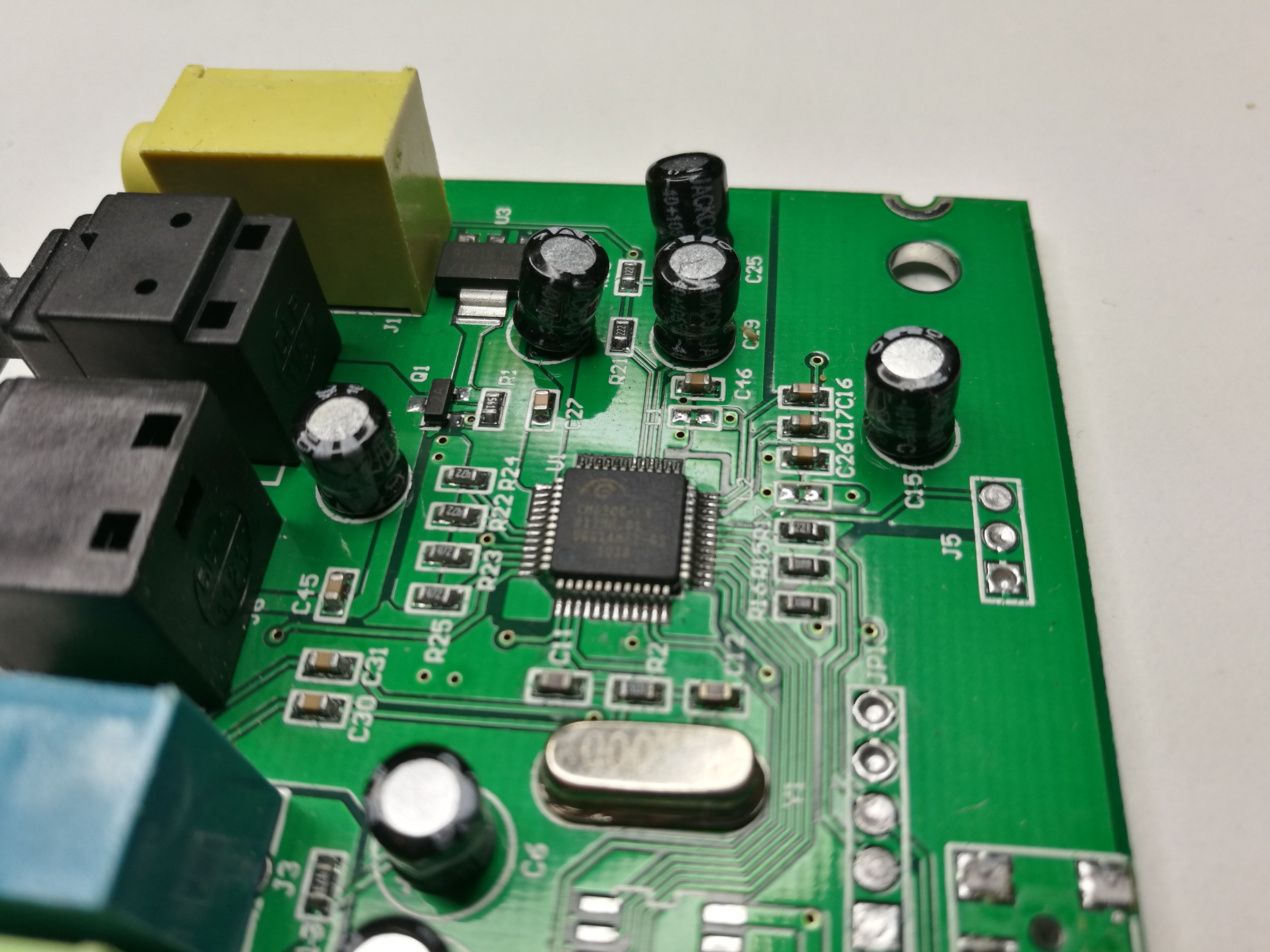

The main chip is Cmedia CM6206. Datasheet says that CM6206 is a highly integrated single chip USB audio solution. All essential analog modules are embedded in CM6206, including 8CH DAC and earphone buffer, 2CH ADC, microphone gain, PLL, regulator, and USB transceiver. Capacitors on audio inputs and outputs are all 100 uF 10V electrolytic capacitors.
USB spec. 2.0 full speed compliant
USB audio device class spec. 1.0 and USB HID class spec. 1.1 compliant
IEC60958 spec. compliant (consumer format S/PDIF input and output with loop-back support)
SCMS (Serial Copy Management System) compliant
Dolby® digital audio streaming via S/PDIF out
USB remote wake-up support
8 channel DAC output with 16 bit resolution: 3.1 Vpp (1.1 Vrms) biased at 2.25V output swing, volume control and mute function, earphone buffer
2X interpolator for digital playback data to improve quality
2 channel ADC input with 16 bit resolution: 3.2 Vpp (or 4.0 Vpp programmed by vendor driver) biased at 2.25V input swing, volume control and mute function
Additional headphone output with selectable source and phone jack sense

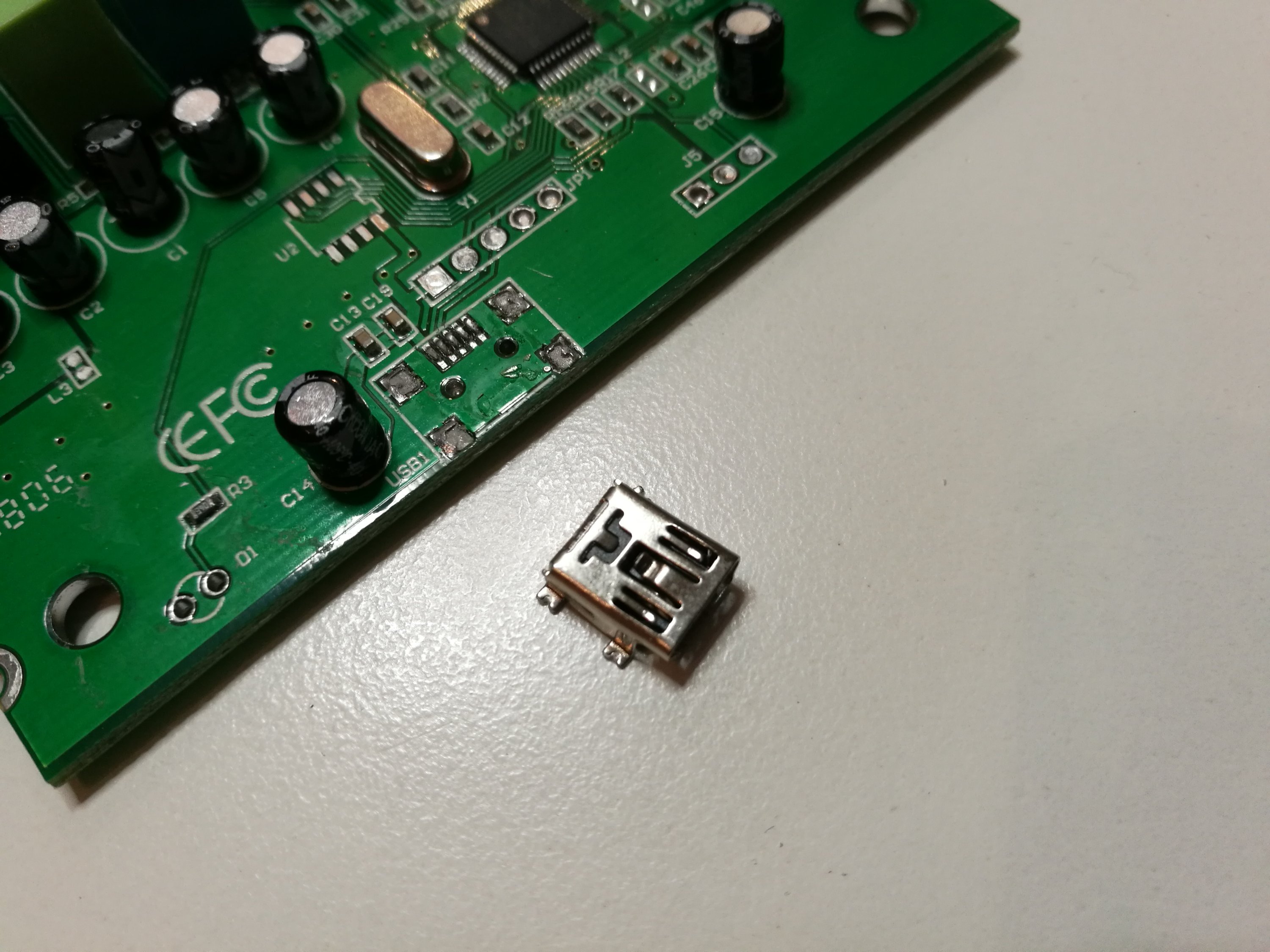

Then to repair task. The USB connector seems to have been ripped off from circuit boards pretty nicely without damage to board itself. For repair task this is very good news.
I suspect that the original soldering was somewhat weak because it broke down like this before tracks on board were damaged. My quess is cold solder joint – common manufacturing quality issue I have seen (bigger components like connector need more heat than tiny SMD parts).
Some soldering under microscope fixed the board.
The sound card worked nicely after resoldering. Hopefully it will last better with proper handmade soldering work.
9 Comments
Tomi Engdahl says:
The card I have looks pretty similar to this:
External 5.1 Channel USB 2.0 Sound Card Optical Audio Adapter – Black
https://www.dx.com/p/external-5-1-channel-usb-2-0-sound-card-optical-audio-adapter-black-41289?r=8527370
Tomi Engdahl says:
Chinese sound recorder SM6206 inside view
https://www.youtube.com/watch?v=L7D9_Isa1F0
Al says:
Thanks man, i had EXACTLY the same problem! You’ve made my day
Mark S. says:
FYI: I use the same unit for old LPs and tapes conversion to FLAC with really good results, but after simple modification:
- Improve low frequency response by replacing C30 and C31 capacitors from 0.1uF to 4.7uF
- Improve power delivery from USB, it will eliminate noise ratio.
Ref. link: http://www.linuxmediaserver.net/mods/few-ideas-about-tweaking-a-chinese-cm6206lx-based-usb-sound-card/
Tomi Engdahl says:
Comments from Facebook:
I have one of these, had it a long time, i keep it in my emergency box just in case my dj controller fails, latency is pants but audio quality pretty good, gets the job done.
Tomi Engdahl says:
Well, most USB soundcards are USB Full Speed (ie. “USB 1.1″) devices. And this fact has one somewhat horrible consequence: all the FS soundcards expect that isochronous USB transfers have bounded latency, which is not true when there are two transaction translators (“3.0″ -> “2.0″ and “2.0″->FS) in the hub hierarchy. And then there are Intel’s reference designs for embedded motherboards with lots of USB2 ports which are implemented by having the first Hub/TT layer on the motherboard…
Tomi Engdahl says:
usb sound adapter 7 .1circuit diagram#2023
https://www.youtube.com/watch?v=K4UIuImXzDg
Tomi Engdahl says:
#413 Your PC Soundcard is an Oscilloscope, a Signal Generator, and a Spectrum Analyzer (Arta, REW)
https://www.youtube.com/watch?v=dX0QkL8xMmE
Oscilloscopes and signal generators are handy tools in our labs. Unfortunately, they are not cheap. What if you had such devices already and did not know?
All newer PCs have loudspeakers and a microphone. So they can create sound as well as record it. And usually in decent quality. Like oscilloscopes and signal generators! We only need a connection and software to create the desired waveforms and visualize the measured voltages. Fortunately, such software is available. And the best: We can use it free of charge!
Andrew Korsak says:
I think I blew out something in my CM6206 when I unplugged the USB cable from the computer before unplugging the LINE input from a radio audio output. Has anyone made this mistake? Also I think my receiver audio level may have been too high. Windows 10 device manager tells me the device failed. What components(s) could have been damaged?
