Many of us are unknowingly exposed to some level radioactive radiation every day. There is always some background radiation. Even some common household items can be a source of radiation.
Radiation meters allow you to know the amount of radiation on your environment. Typically this type of meters are used for letting you know if radiation was above background. A Geiger counter — named after Hans Geiger, a German scientist from the early 1900s who worked on detecting radiation — is an instrument that can detect radiation. Radiation meters based on it counter to measure how many radiation pulses are received during measurement period.

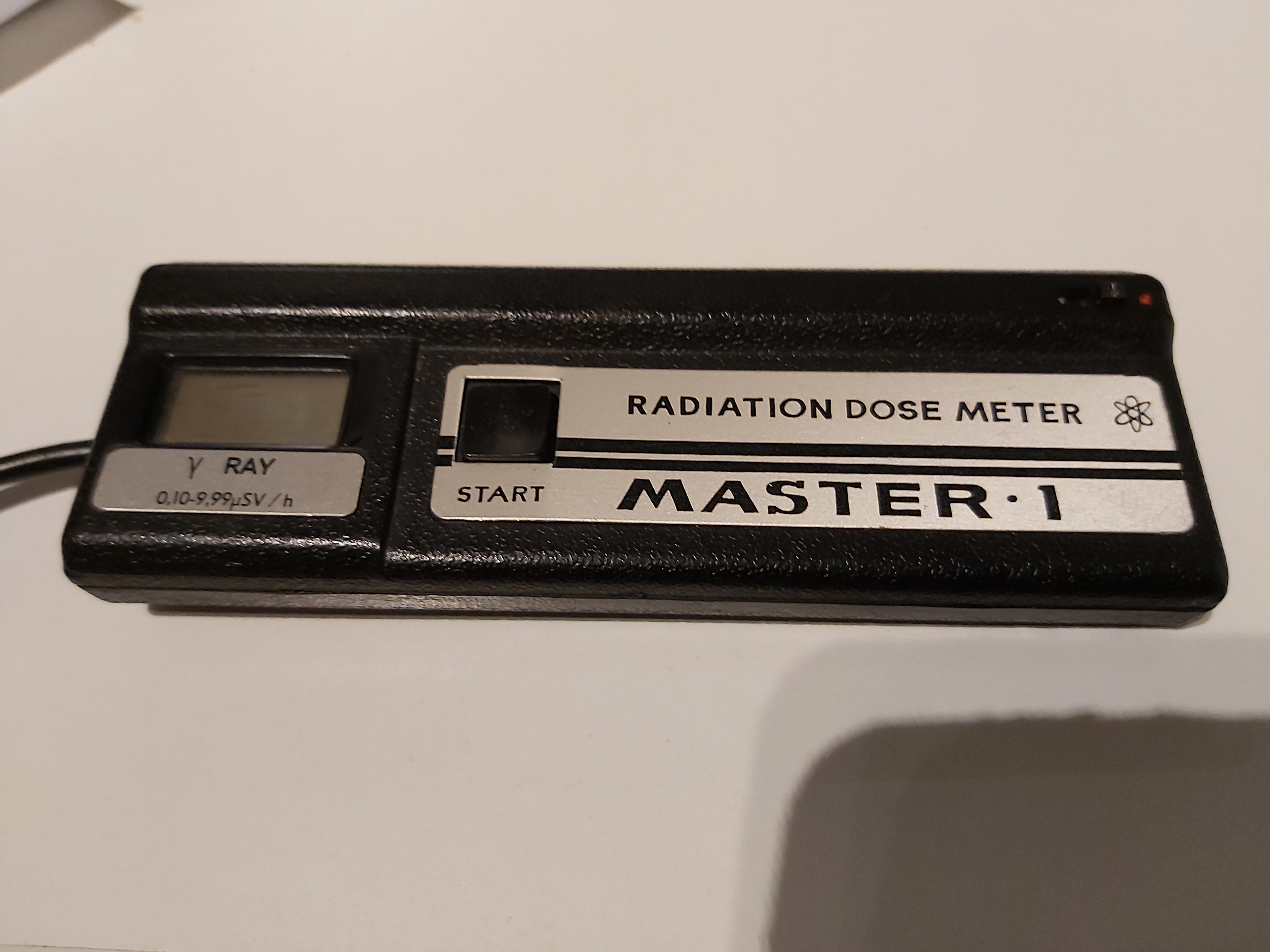

The Master-1 is probably one of the cheapest Soviet Radiation Meter on the market and is actually a working basic meter to measure level of gamma radiation. It’s definitely a cool piece of history! Household dosimeter radiometer “Master-1″ was popular at the beginning and the middle of 1990′s (everybody remember the Chernobyl disaster). Dosimeter “Master-1″ intended for measuring of ionizing radiations including dose rate of gamma-radiation. This device does not have sound signals, but will count the number of detected radiation pulses.
Master-1 might not seem to be super practical, but it works OK. Seems like it would be good at what it was designed for, letting you know if radiation was above background. I bought mine cheaply in the 1990′s, and it still works (and gives quite accurate readings) after some fixes made over years. Meters like this can actually warn you of too much radiation (due some accident, very high background level or you are too near some radioactive thing).

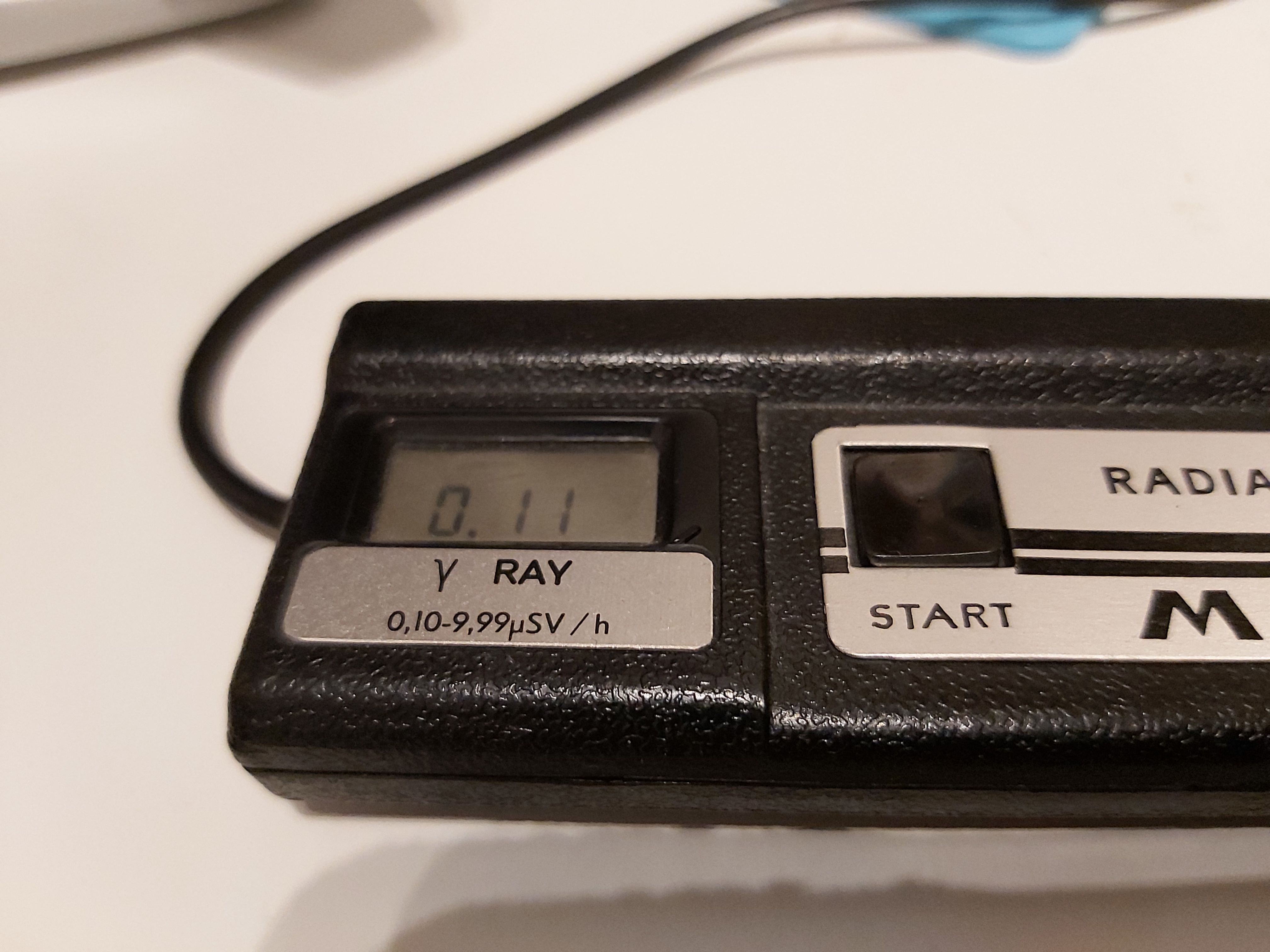

Normal reading with the meter is pretty close to the “official” background radiation level on the area measured by professionals.
The meter measures the number of pulses over about 36 seconds.
Here is a video of similar meter (there are different variations of MASTER-1 with slightly different case and features): ‘Master-1’ Soviet Radiation Dose Meter
Let’s look inside the meter.

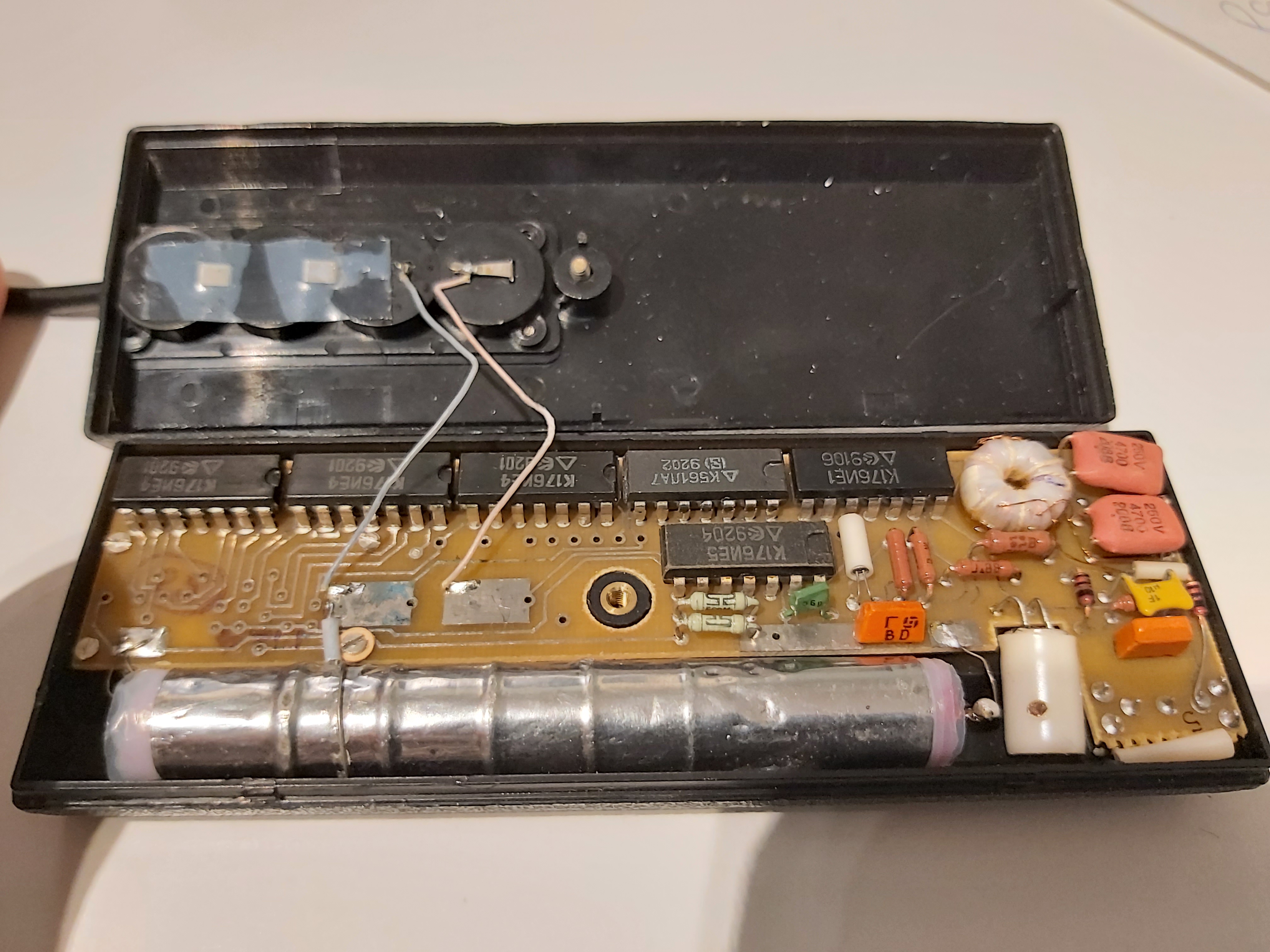

There seems to be batteries, the geiger tube, high voltage power supply (few hundred volts) and the pulse counter + timer circuitry (those ICs).

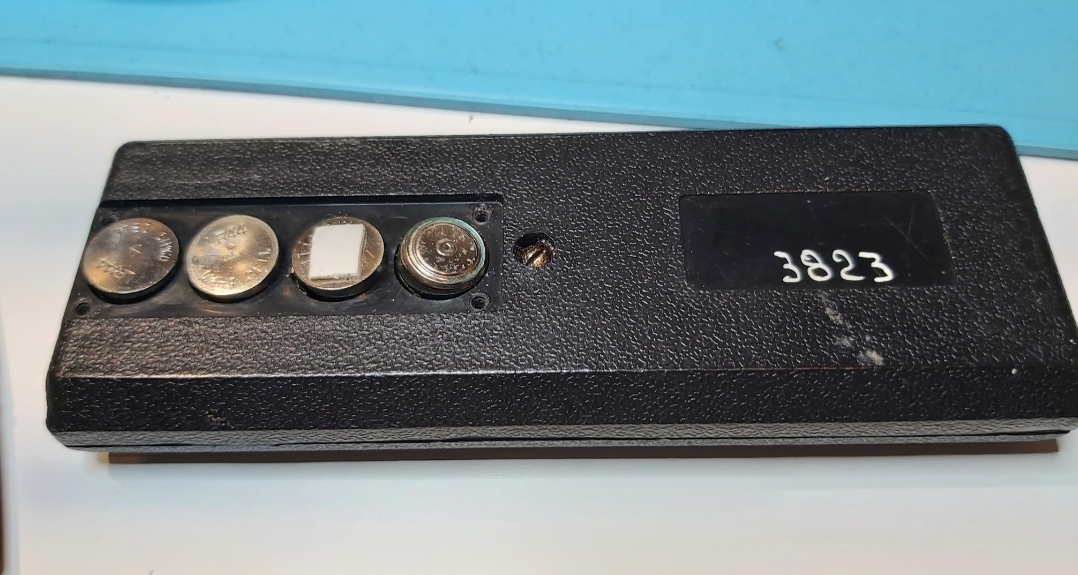

The device was originally powered with four 1.5V button batteries on this battery holder. The batteries are wires in series, so the meter works at around 6V when batteries are new.
The battery compartment worked OK when the meter was new, but over the years the battery holder became very unreliable. To get the meter work more reliably, I threw out the batteries, and wired in the + and – power wires from USB cable. In this way I can get reliable 5V (or slightly higher) from any common USB power source (computer, smart phone chanrger etc..). The MASTER-1 meter seemed to work well with 5V power from USB power source and give still reliable measurement results.
Modernized version of Russian GEIGER COUNTER Radiation dose meter personal dosimeter MASTER-1 can be bought here and there. The meter was originally made in Russia, but nowadays it seems that most meters on the market are made in Ukraine.
