LED Torch

Circuit Notes:

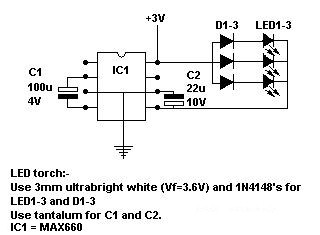

Based on the Maxim MAX660, designed to power three 3mm/5mm white LED's from 3V (1.5V min) , intended for replacing incandescent bulbs in small torches.
